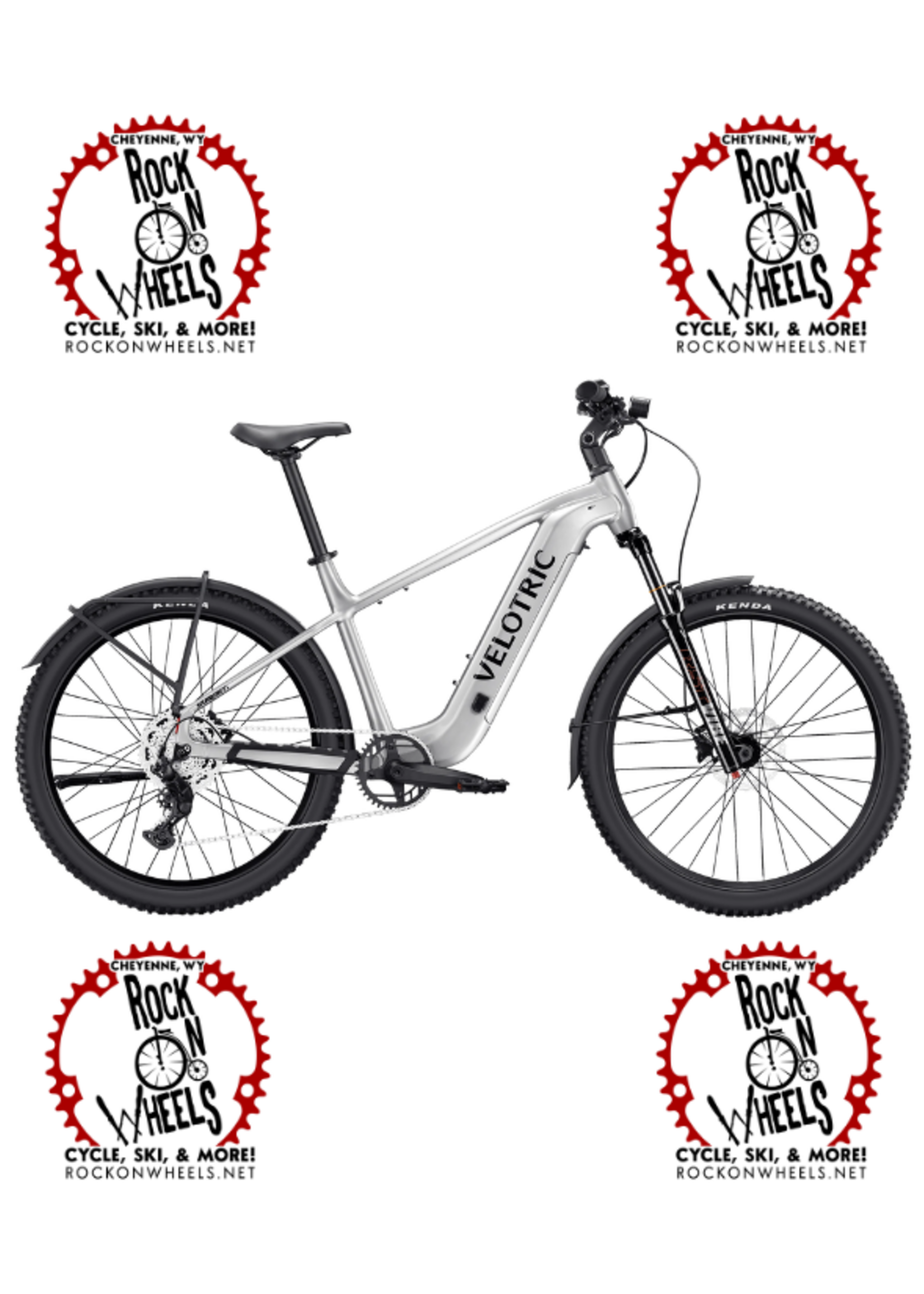

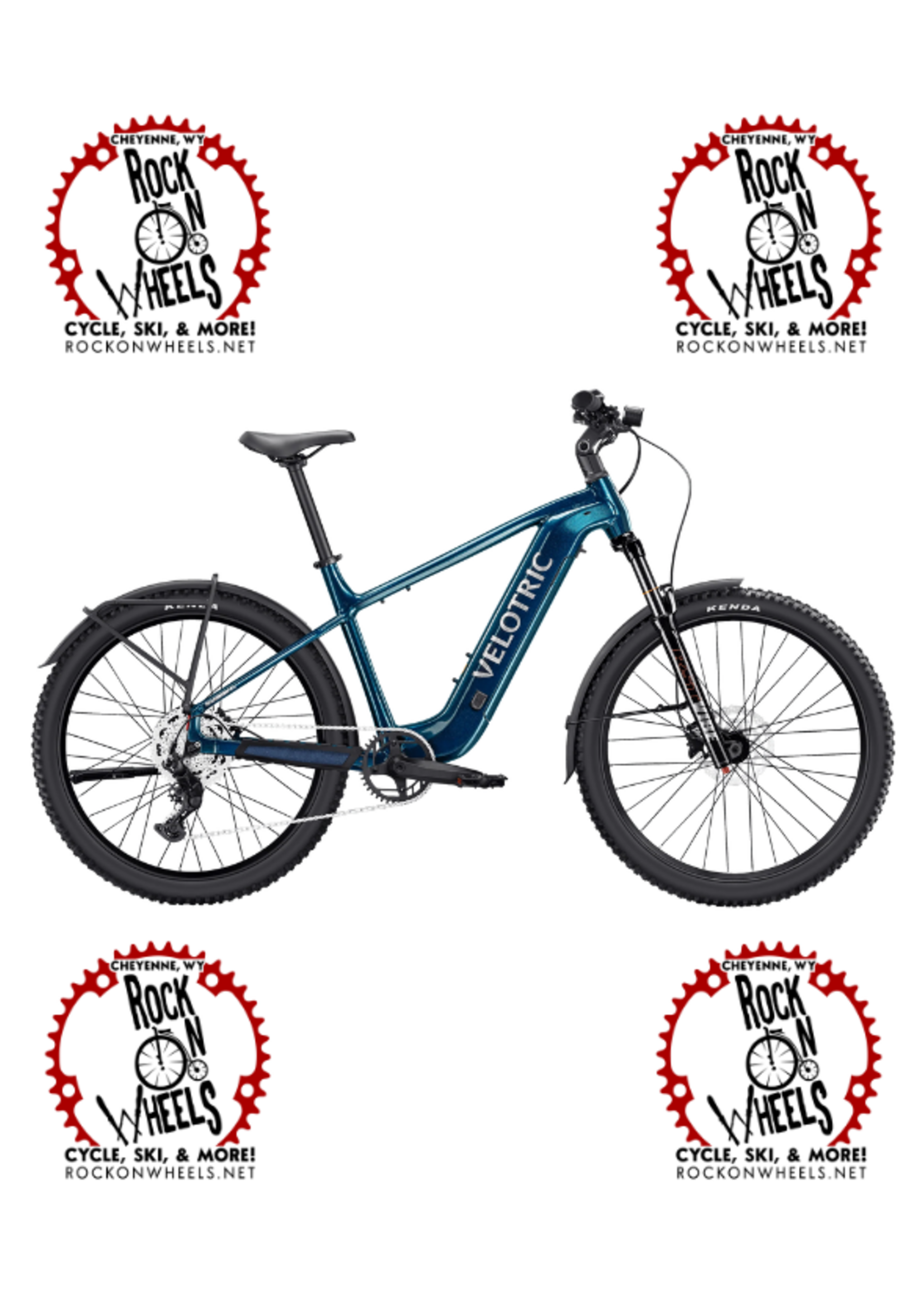

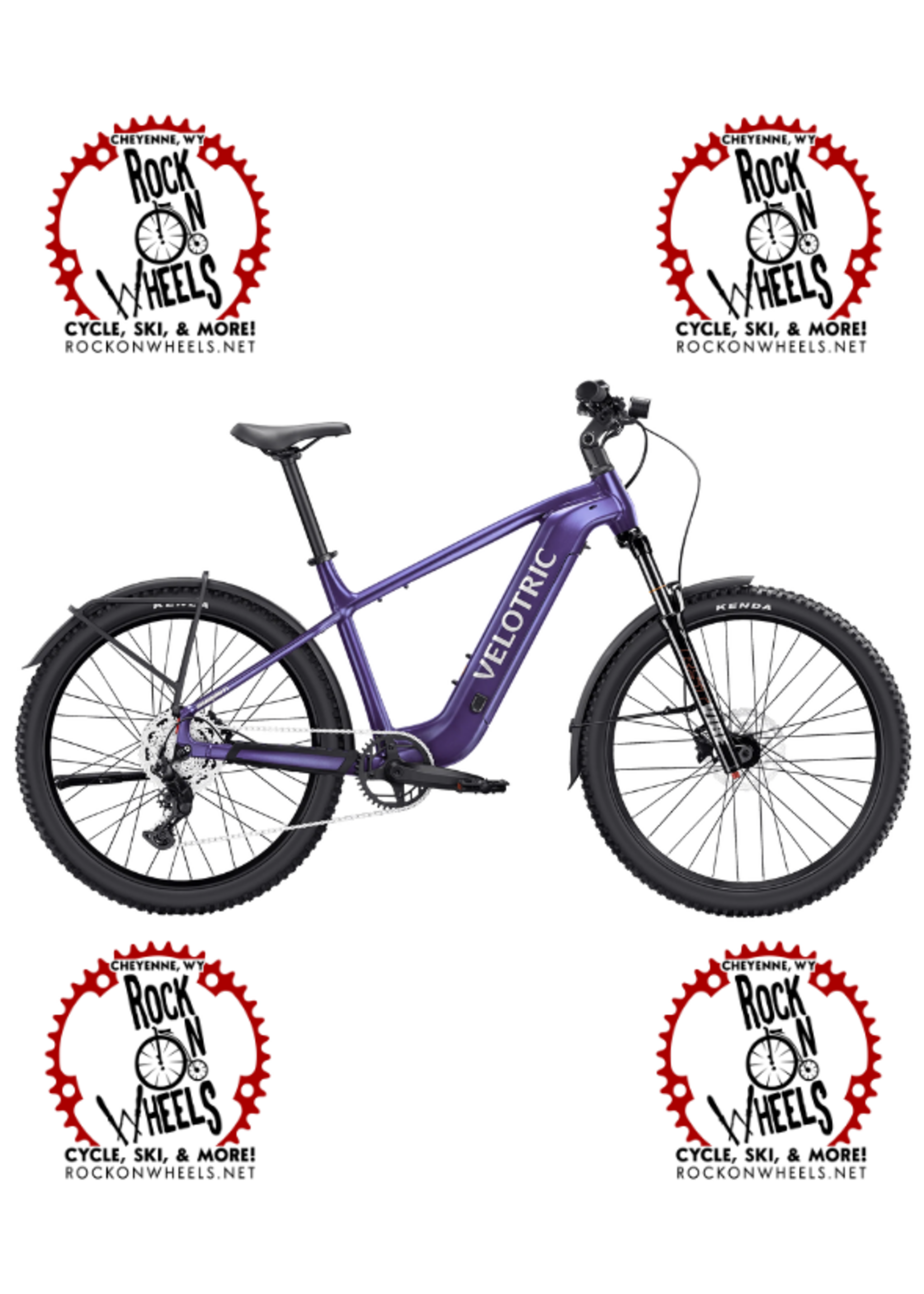

Velotric Summit 2

Motor 750W/100Nm Top Speed 28 MPH SensorSwap™ Torque/Cadence

Max Range 95 Miles Waterproof Battery IPX7 Pedal Assist Mode 5 Modes

Specifications

SIZE GUIDE

Bike Size

Regular / Large User Height Range. R：5'2''~5'10'' L：5'7''~6'5''

FRAMESET

Frame Triple-Butted Aluminum Alloy Fork RST Air Suspension 120mm Travel with Lock-out, Rebound Adjustable

ELECTRONICS

Motor 48V, 750W (1300W Peak Power), 100Nm Battery 48V, 16.7Ah (801.6Wh), IPX7, Certificated by UL2271 Cell

Samsung/LG 21700 cell, Certificated by UL2580

Charger 48V, 3A Fast Charger Sensor Torque and Cadence Sensor

Display 2.0" Left-mounted Full-color Display with High Brightness, Bluetooth，NFC

USB Port USB Type-C phone Charge Throttle Trigger-control, Removable

Pedal Assist 4 Riding Modes +Pulse Mode/Ride Tuning Walk Mode 2.9MPH/ Walk & Hold

Front Light 500LM High-output Integrated LED, Adjustable Angle

Rear Light Brake highlight, Turn Signal Water Resistant IPX6

Anti-theft Apple Find My & Google's Find Hub，NFC Card Unlock

SPEED & RANGE

Max Speed (Default） 20MPH Max Speed Adjustable Range 12~28MPH Ebike Class 1/2/3

Pedal Assist Range 95 Miles Throttle Range 70 Miles

DRIVETRAIN

Chainrings BCD 104, 40T Narrow-Wide Chainring Crankset Aluminum Alloy, 165mm

Cassette 9-speed,11-46T Rear Derailleur SHIMANO Cues, 9-speed

Shift Lever SHIMANO Cues, 9-speed Chain KMC XGlide 9-speed

BRAKE

Brake SHIMANO MT200 Hydraulic Disc BraKe Rotors 180mm Front and Rear

Brake Levers Aluminum Alloy, with Power Cutoff

WHEEL

Rims Double-wall Aluminum Alloy Front Hub NOVATEC Aluminum Alloy, 15x110mm Thru-axle

Tire Kenda 27.5x2.4" MTB Puncture Resistant Tires

COCKPIT

Handlebar Aluminum Alloy, Φ31.8mm, 740mm Grips Durable Ergonomic Grips, Lockable

Stem Adjustable, Aluminum Alloy, ф31.8mm, 60mm Length Saddle VELOTRIC Comfort Ergonomic Seat

Seatpost Aluminum Alloy, φ31.6mm, 350mm Clamp Aluminum Alloy, Quick Release

SUPPORTS

Fenders Plastic，Front and Rear Full Coverage Rear Rack Optional Pedals Plastic

Kickstand Aluminum Alloy, Included, Rear Mount

WEIGHT & LOAD

Bike Weight 57 lbs *Weight does not include fenders, kickstands, or pedals.

Rear Rack Load Capacity 66 lbs. Max Bike Load Capacity 440 lbs

CERTIFICATION

UL Certification UL2849 & UL2271 ISO Standard ISO 4210
