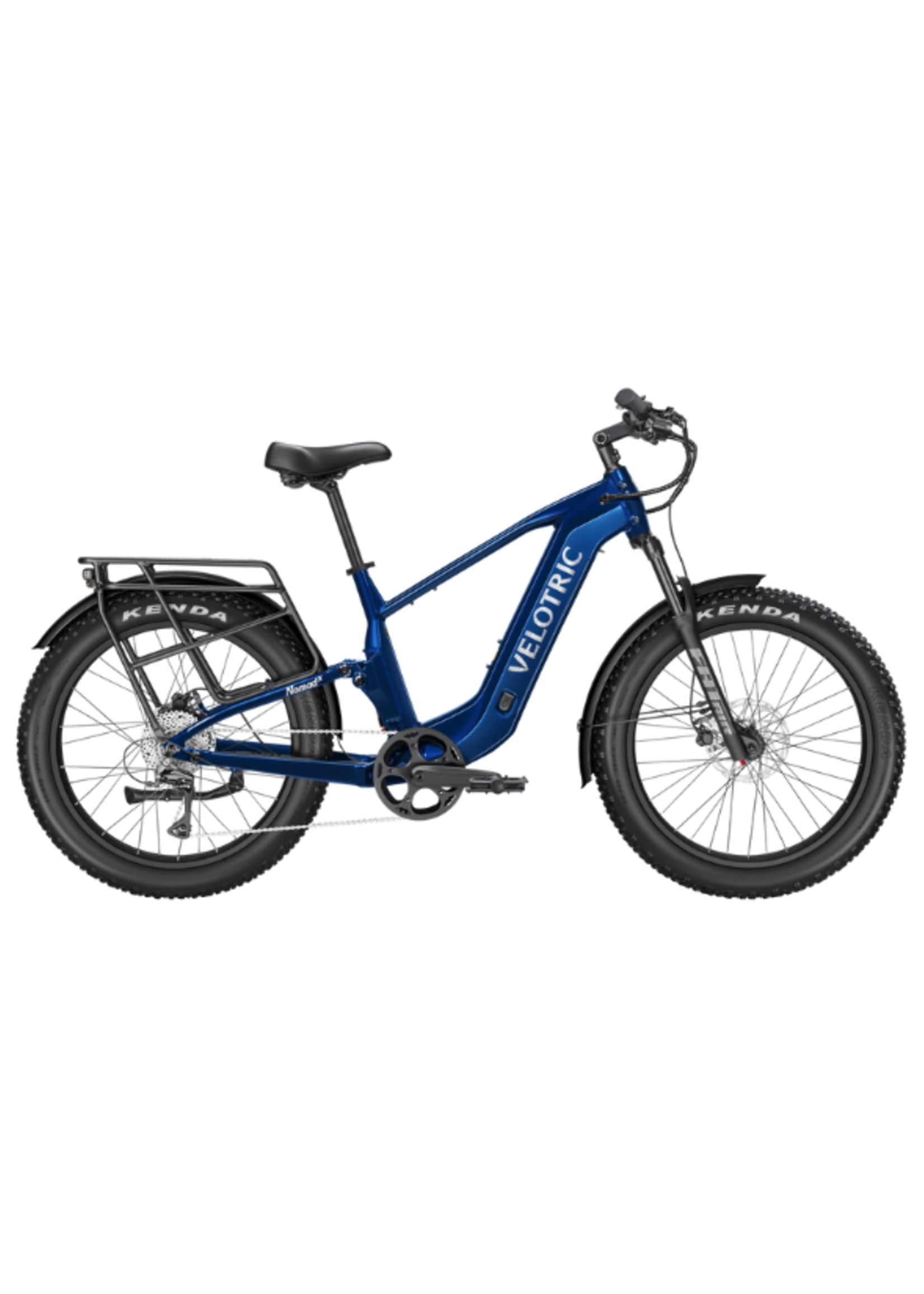

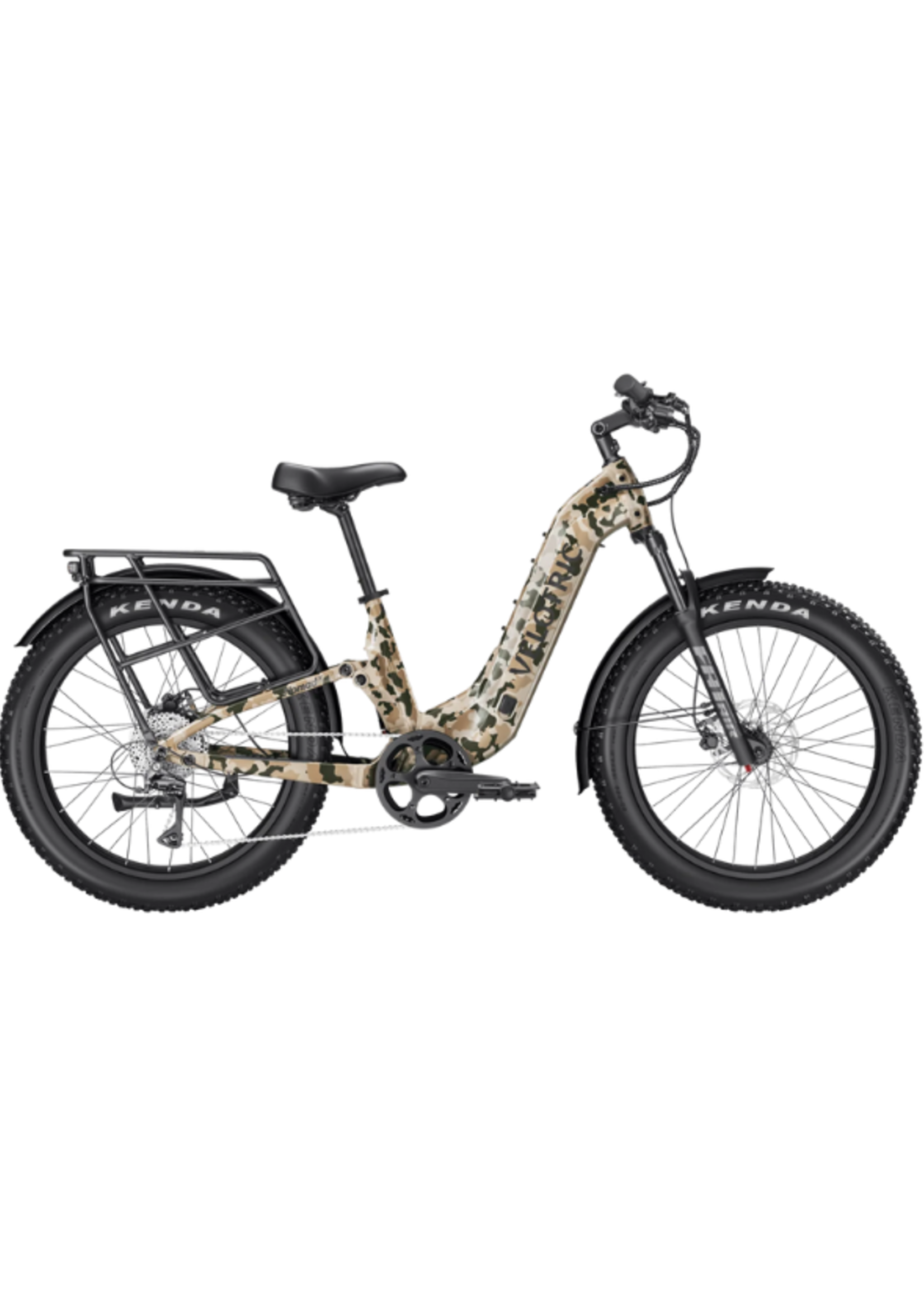

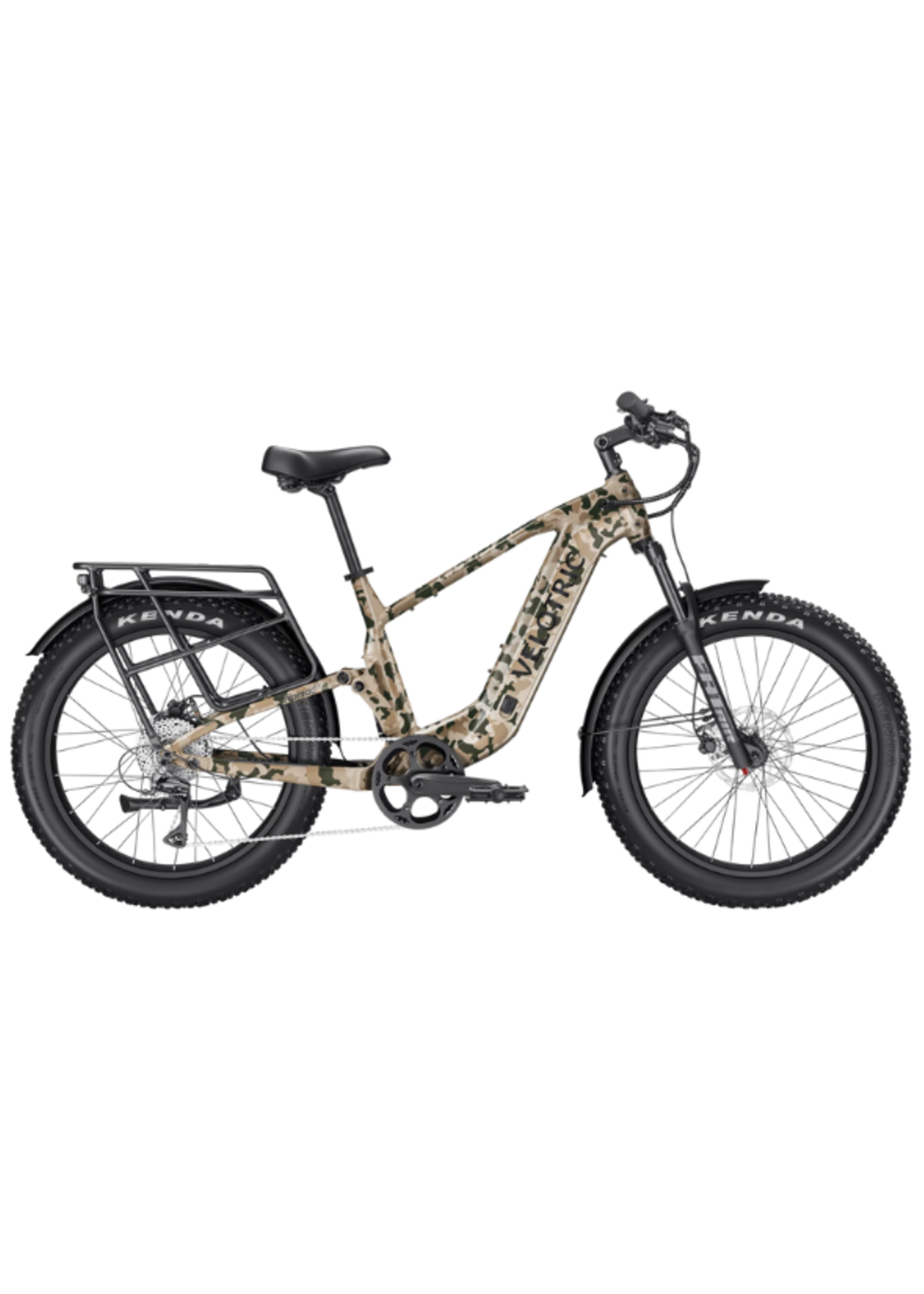

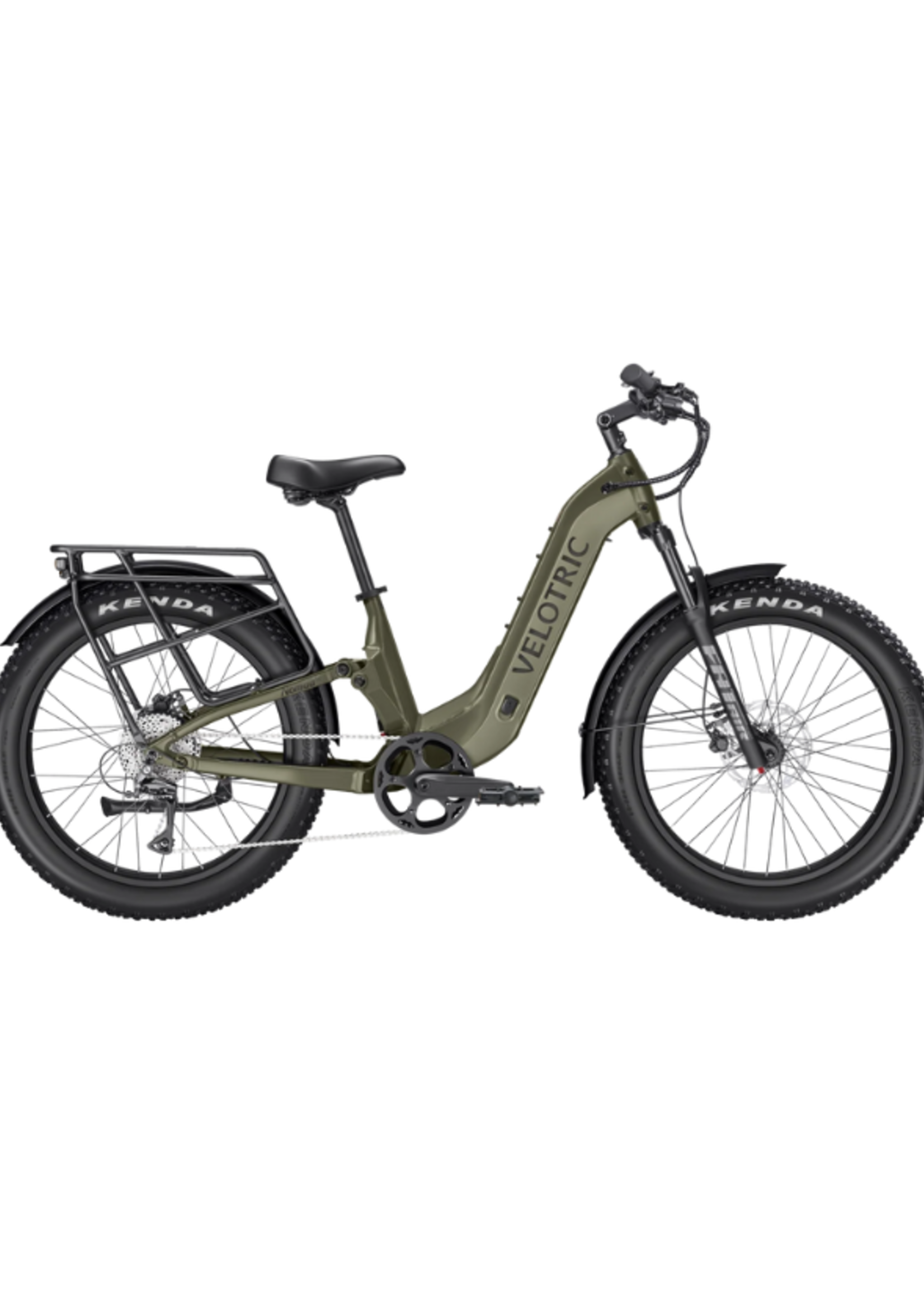

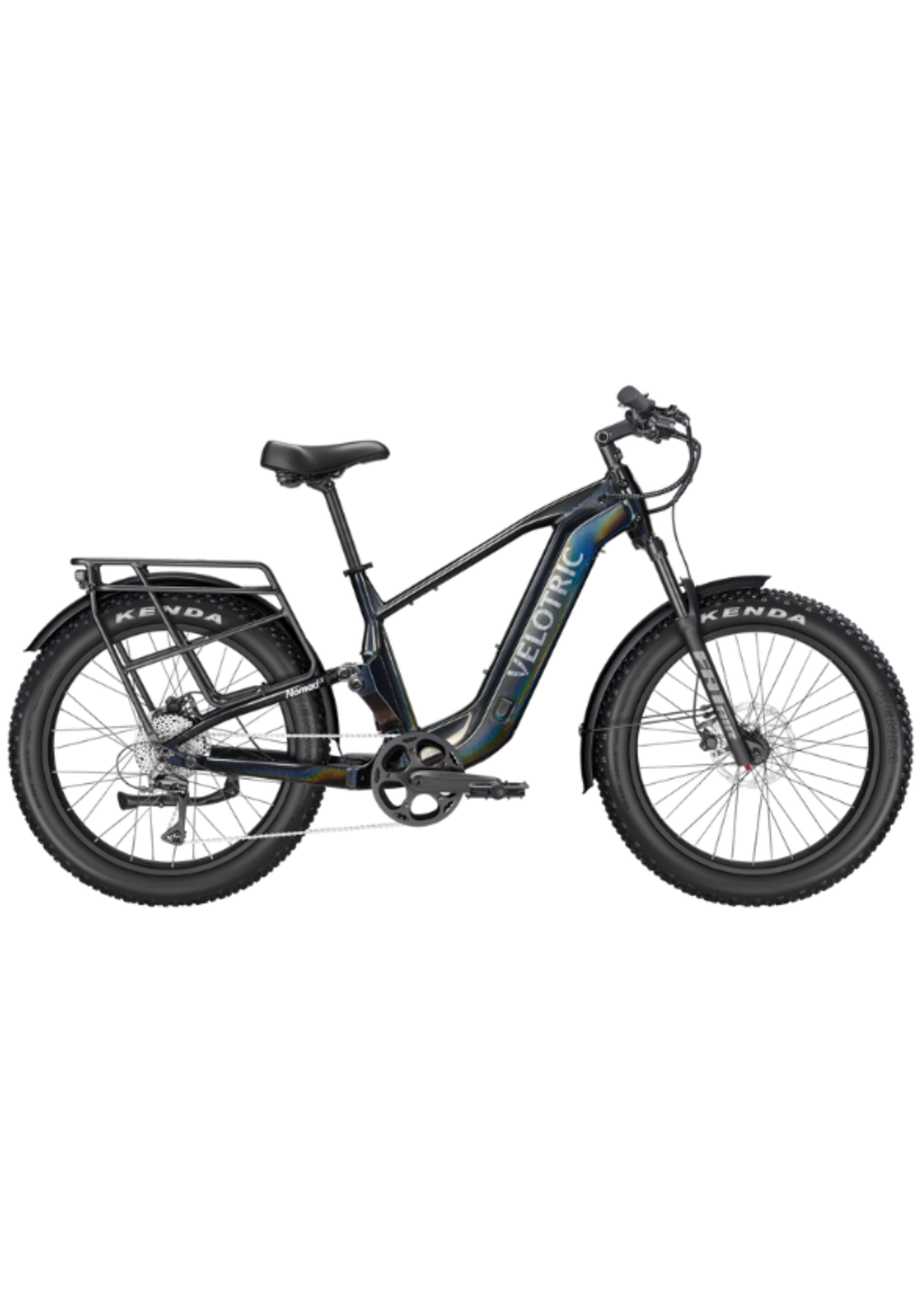

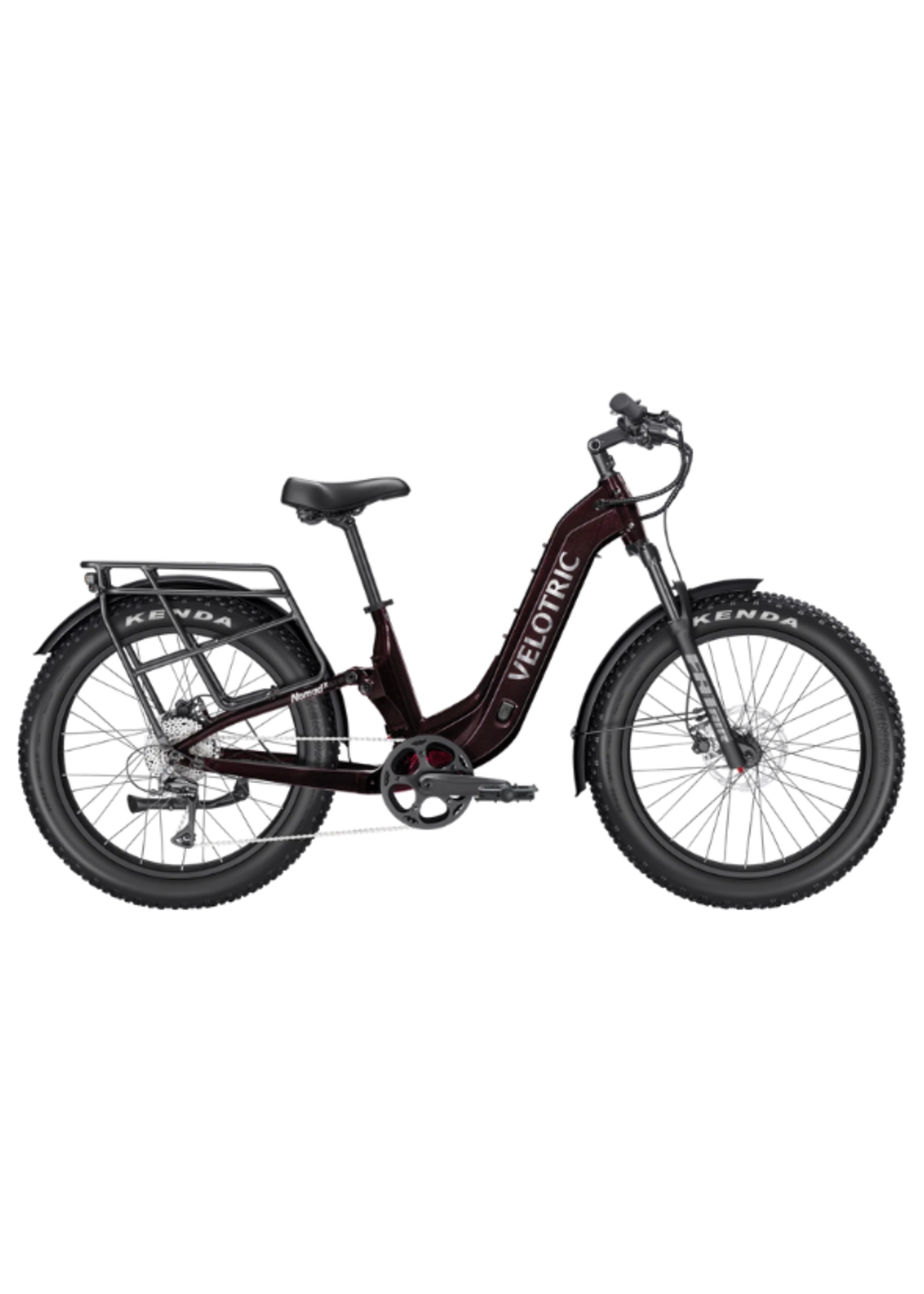

Velotric Nomad 2X Full Suspension Fat Tire Ebike

General Info

Model Name - Velotric Nomad 2X

Colors - Obsidian, Royal Blue, Fig, Sage, Multi-Terrain Camo

Frame - High-Step, Step-Through

Size Guide

Bike Size - Regular (Step-Through); Large (High-Step)

User Height Range - Regular: 4'11'' ~ 5'10''; Large: 5'10'' ~ 6'5''

Electronics

Motor - 750W,105Nm Torque

Battery - Removable, 48V, 16.7Ah (801.6Wh), IPX7 & UL 2271 Certified

Cell - Samsung/LG 21700 cell, Certificated by UL2580

Display - 3.5" Full color, High brightness, Adjustable angle

SensorSwap™ - Torque/Cadence

USB Port - USB Type-C phone charge

Throttle Assist - Trigger-control, removable

Pedal Assist Modes - 3 Riding Modes x 5 PAS Levels

Front Light - Light sensing 130 Lux / 500 LM high-output integrated LED

Water Resistant - IPX6 (Whole Bike)

App & Apple Find My™ - APP OTA & Find My

Frameset

Frame - Triple-Butted Aluminum Alloy, Rear Wheel 80mm Travel

Front Fork - Air suspension 120mm travel with Lock-out, Nutted, Rebound adjustable

Rear Shock - DNM 38mm Air suspension, 80mm wheel travel

Speed & Range

Max Speed - 12~28 MPH; 20 MPH (Default)

Class - 1/2/3

Throttle Range - 50 Miles

Pedal Assist Range - 75 Miles

Brake

Brake - Tektro Hydraulic Disc Brake

Rotors - 203mm Front / 180mm Rear

Drivetrain

Chainrings - 48T

Crankset - Aluminum Alloy, 170mm

Freewheel - 11-40T

Rear Derailleur - SHIMANO 8-speed

Shift Lever - SHIMANO 8-speed

Weight & Load

Bike Weight - 80 Lbs

Max Bike Load - 560 Lbs

Rear Rack Load Capacity - 120 Lbs

Towing Capacity - 1000 Lbs

Cockpit

Handlebar - Aluminum Alloy, Ф31.8mm, 700mm

Grips - Durable ergonomic grips, lockable

Stem - Adjustable, Aluminum Alloy, ф31.8mm, 60mm (ST) / 90mm (HS)

Saddle - Velotric Comfortable & Ergonomic Seat

Wheel

Rims - Aluminum Alloy

Front Hub - Aluminum Alloy, nutted

Tire - KENDA 26x4.0" eBike puncture resistant tires

Supports

Fenders - Front and rear full coverage

Rear Rack - Aluminum Alloy, MIK HD

Pedals - Plastic

Kickstand - Aluminum Alloy, included, rear mount

Certification

UL Certification - UL 2849 & UL 2271

ISO Standard = ISO 4210
