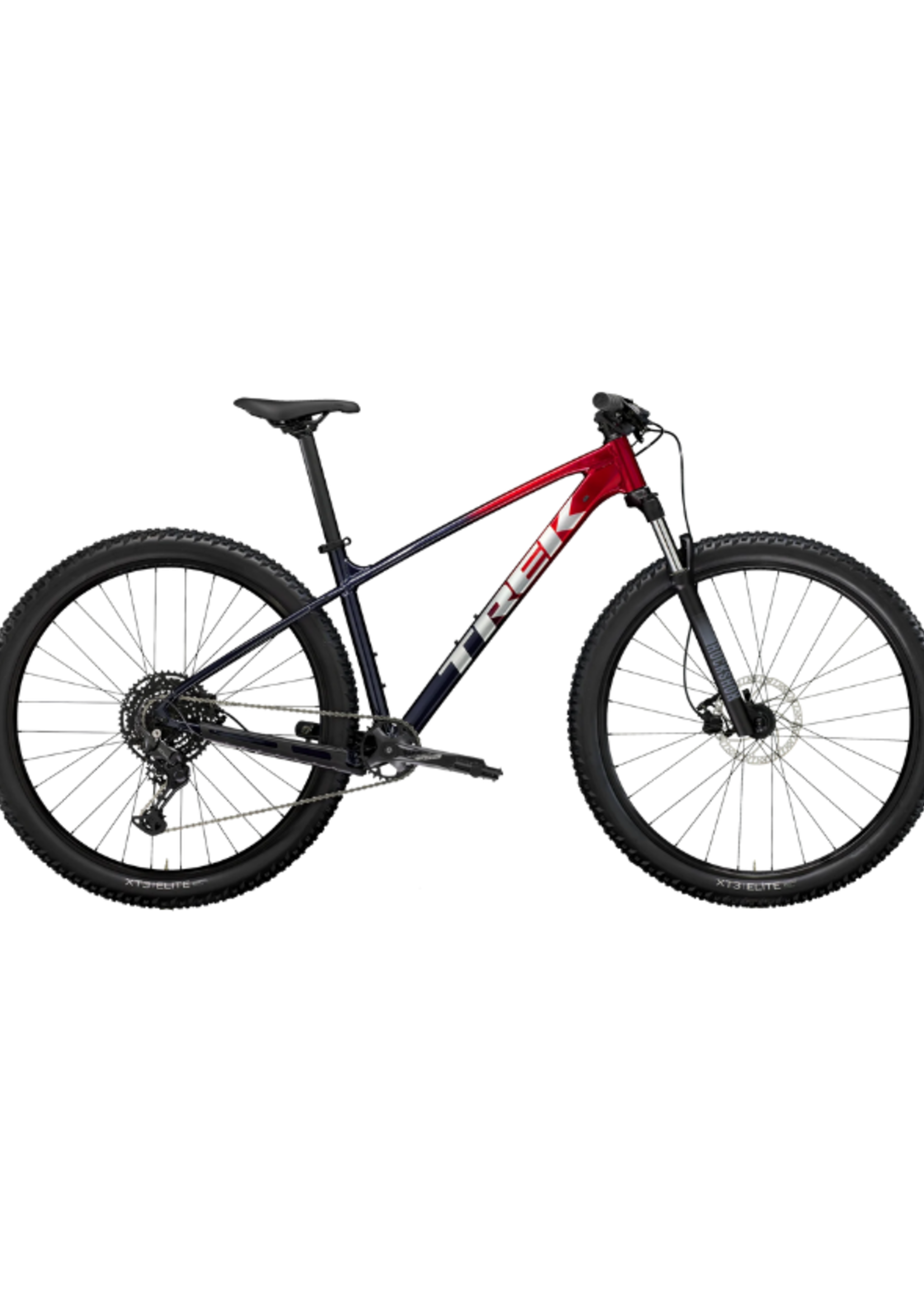

Trek Marlin 6 Gen 3 (2024)
Marlin 6 is an ideal trail bike for riders who want to progress on the dirt, and want a bike that can keep them rolling off of the trail, too.
A lightweight aluminum frame with modern trail riding geometry and internal routing that keeps cables protected and keep the bike looking sleek. A 100mm RockShox Judy front suspension fork that cushions rocks, roots, and bumps in the trail, 10-speed fuss-free Shimano CUES shifting, and the serious stopping power of hydraulic disc brakes.
You want a trail bike that's dialed for building confidence on the dirt, and versatile enough for commuting to work or school.
A lightweight aluminum frame with modern trail riding geometry and internal routing that keeps cables protected and keep the bike looking sleek. A 100mm RockShox Judy front suspension fork that cushions rocks, roots, and bumps in the trail, 10-speed fuss-free Shimano CUES shifting, and the serious stopping power of hydraulic disc brakes.
Marlin 6 is an ideal trail bike for riders who want to progress on the dirt, and want a bike that can keep them rolling off of the trail, too.
- Marlin Gen 3 gives you serious trail capability, with big tire clearance and slack, confidence-boosting geometry that keeps you stable from singletrack to city
- Its RockShox fork gives you 100mm of suspension for turning rocks and roots in the trail into smooth-sailing
- Fender mounts make it easy to accessorize, so your mountain bike can double as a rugged commuter
- Internal routing makes it easy to add a dropper post that lets you lower your saddle on the fly for more confident descending
- Marlin models in sizes XXS and XS have a curved top tube and lower stand over height that makes it easier for smaller riders to mount and dismount.
TREK MARLIN 6 SPECIFICATIONS
| *Frame |
Size: XXS , XS
Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew |
Size: S , M , ML , L , XL , XXL
Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew |
| *Fork |
Size: XXS
RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel |
Size: XS , S
RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel |
Size: M , ML , L , XL , XXL
RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel |
| Max compatible fork travel |
120mm, XXS: 80mm |
Wheels
| Hub front |
Formula DC-20, alloy, 6-bolt, 100mm ThruSkew |
| Hub rear |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| Skewer rear |
173x5mm QR |
| Rim |
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve |
| *Tire |
Size: XXS
Bontrager XT3 Elite, Tubeless Ready, Inner Strength casing, wire bead, 60 tpi, 26x2.35'' |
Size: XS , S
Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 27.5x2.35'' |
Size: M , ML , L , XL , XXL
Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.35'' |
| Max tire size |
Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
Drivetrain
| Shifter |
Shimano U6000, 10 speed |
| Rear derailleur |
Shimano CUES U6000 GS |
| *Crank |
Size: XXS , XS
FSA Alpha Drive, 30T, 160mm length |
Size: S , M , ML
FSA Alpha Drive, 30T, 170mm length |
Size: L , XL , XXL
FSA Alpha Drive, 30T, 175mm length |
| Bottom bracket |
FSA, 73mm, threaded cartridge, 122.5mm spindle |
| Cassette |
Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed |
| Chain |
Shimano LG500, 9/10/11 speed |
| Pedal |
VP-536 nylon platform |
| Max chainring size |
1x: 34T, 2x: 36/22 |
Components
| Saddle |
Bontrager Verse Short, stainless steel rails |
| *Seatpost |
Size: XXS
Bontrager alloy, 31.6mm, 12mm offset, 300mm length |
Size: XS , S , M
Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
Size: ML , L , XL , XXL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
| *Handlebar |
Size: XXS , XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
Size: S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width |
Size: M , ML , L , XL , XXL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Grips |
Bontrager XR Trail Comp, nylon lock-on |
| *Stem |
Size: XXS , XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm length |
Size: M , ML , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length |
Size: XXL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length |
| Headset |
Semi-integrated, 1-1/8'' |
| Brake rotor |
Tektro, 6-bolt, 160mm |
| *Brake Set |
Size: XXS , XS , S
Tektro HD-M276 hydraulic disc, short reach |
Size: M , ML , L , XL , XXL
Tektro HD-M275 hydraulic disc |
| Rotor size |
Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
Weight
| Weight |
M - 14.50 kg / 31.97 lbs (with tubes) |
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
