Bikes are in-store pickup only.

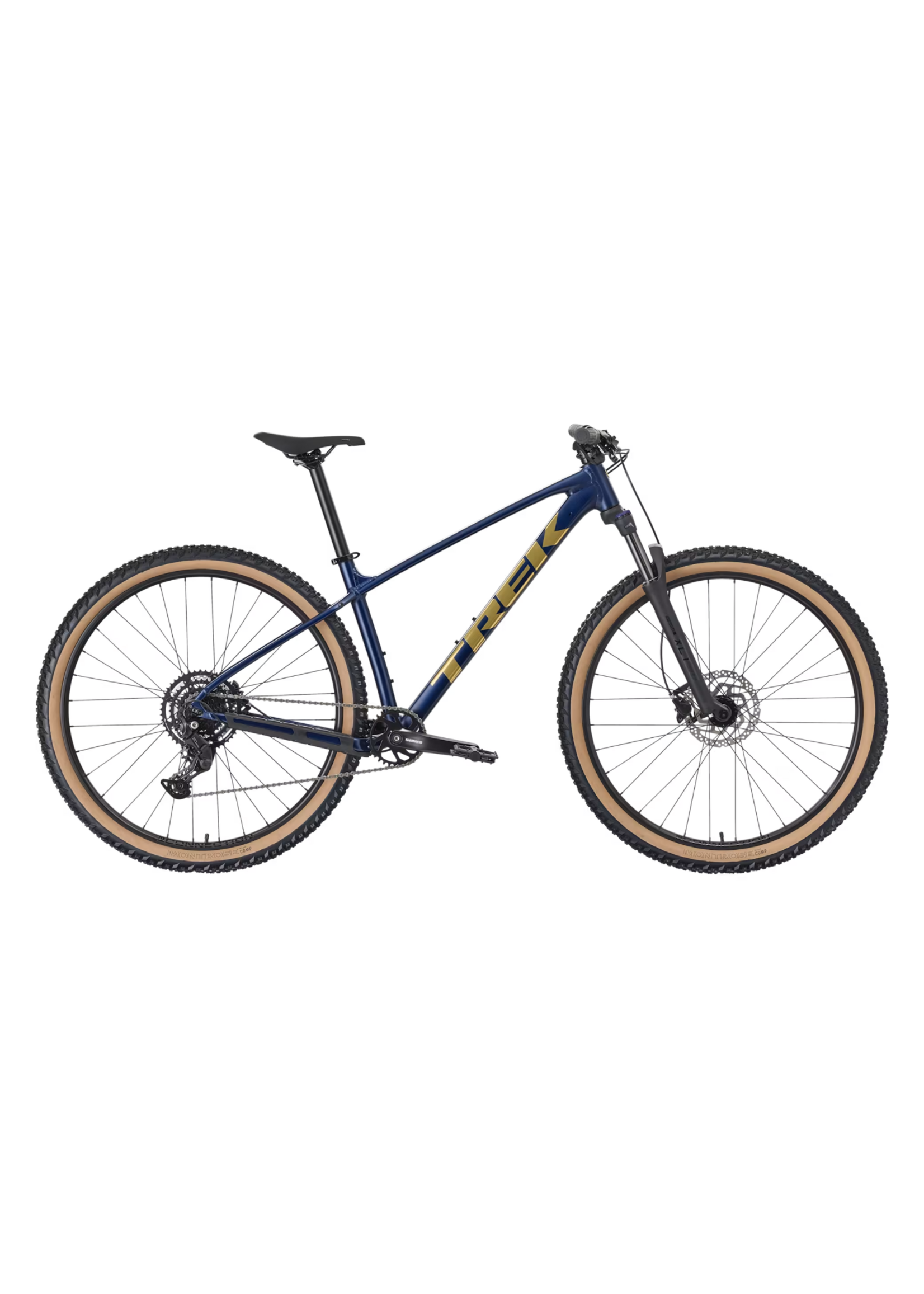

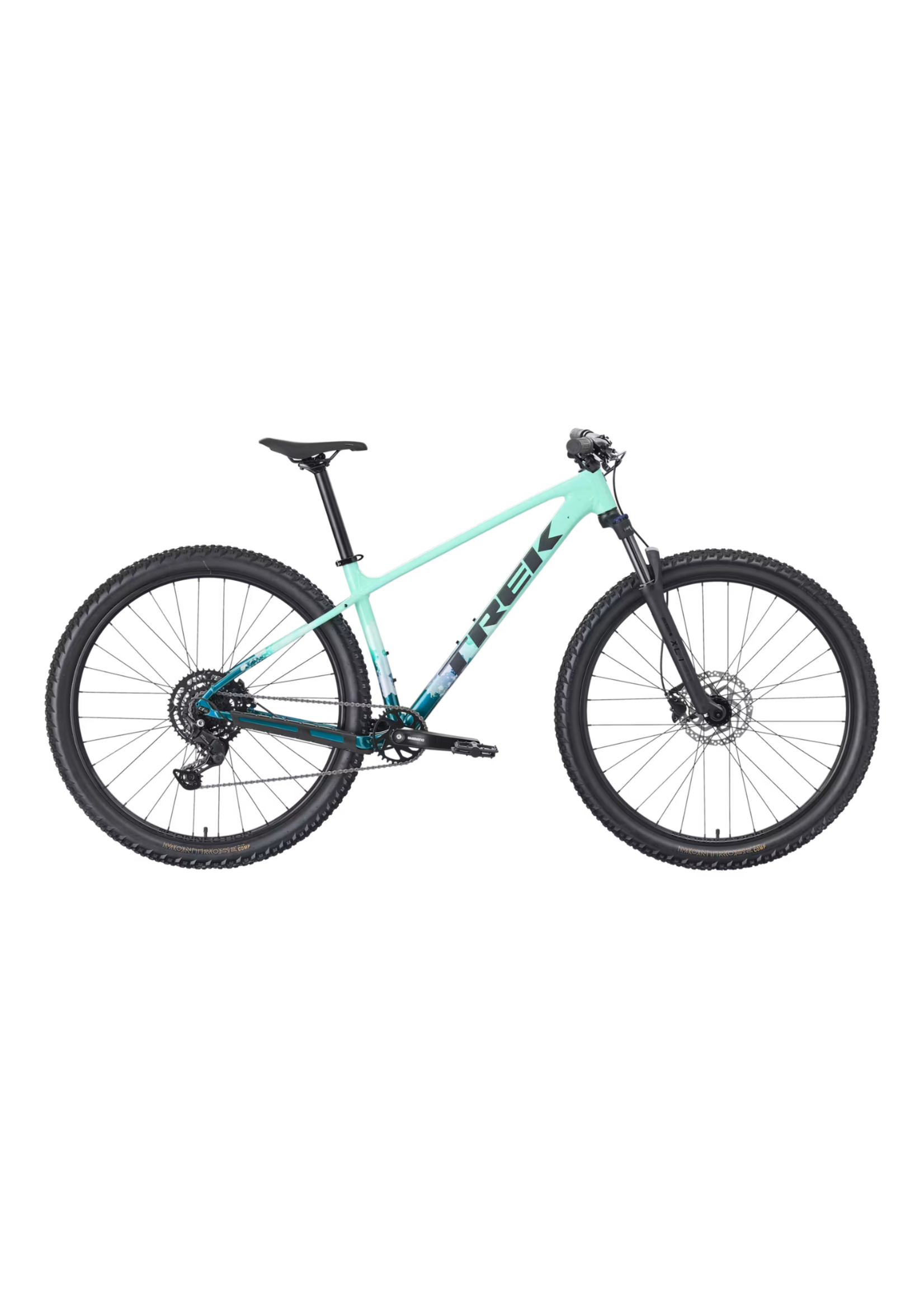

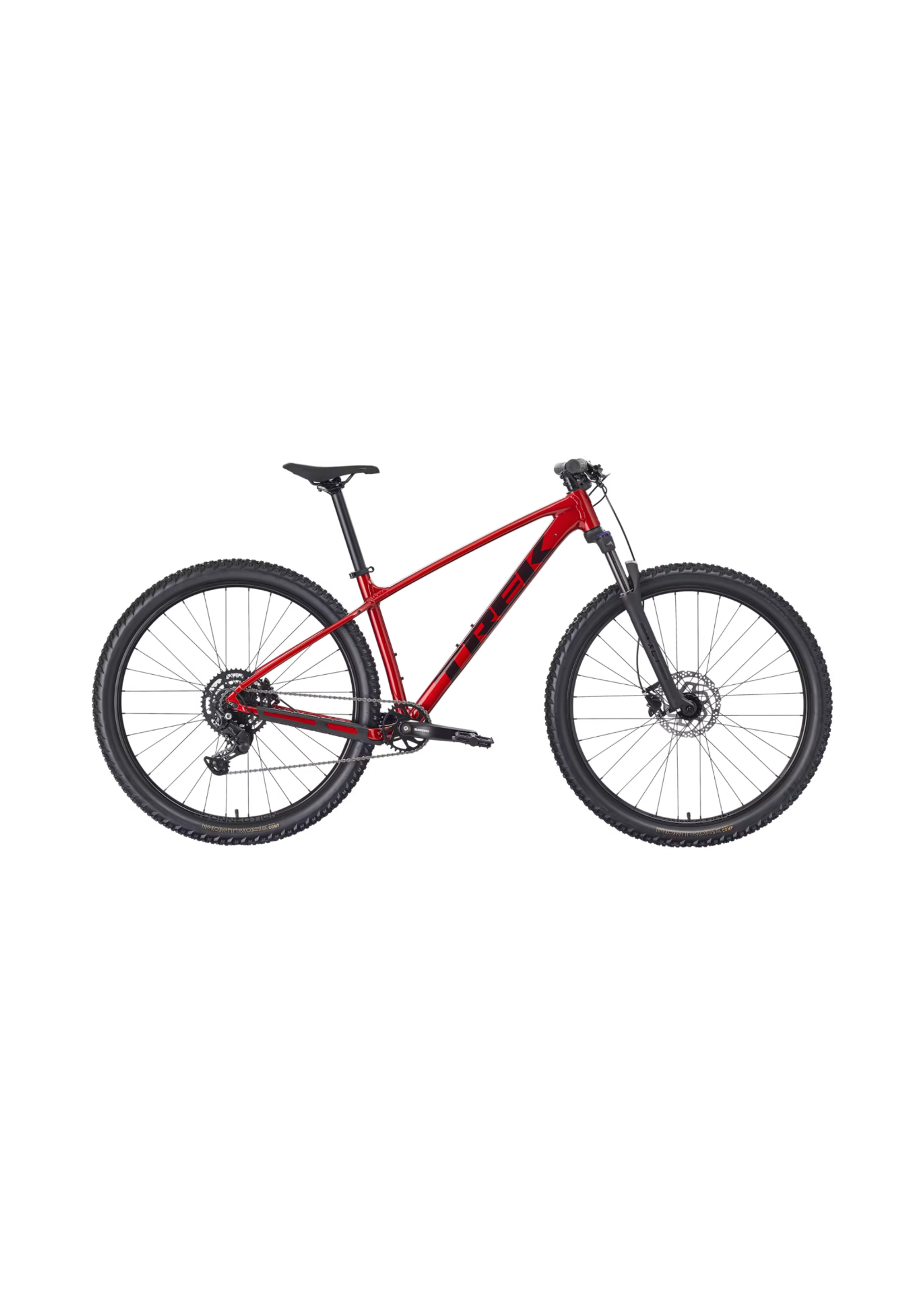

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail.
It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting, and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
MARLIN 5 GEN 3 SPECS
To measure your height, stand straight up, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inseam measurement. Your inseam is very important to your final bike size so please measure carefully.
| Size | Rider Height | Inseam |
|---|---|---|
| XS |
145 - 155 cm 4'9" - 5'1" |
69 - 73 cm 27" - 29" |
| S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
| M |
165 - 177 cm 5'5" - 5'10" |
79 - 83 cm 31" - 33" |
| ML |
173 - 180 cm 5'8" - 5'11" |
81 - 86 cm 32" - 34" |
| L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
| XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
| 2XL |
195 - 203 cm 6'5" - 6'8" |
91 - 97 cm 36" - 38" |
All measurements provided in cm unless otherwise noted.
| Frame size number | Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14.5" | XS | 27.5" | 34.0 | 73.8° | 74.0° | 9.0 | 66.5° | 55.1 | 31.3 | 4.5 | 43.3 | 4.2 | 11.0 | 109.2 | 65.8 | 39.0 | 56.3 |
| 15.5" | S | 27.5" | 37.0 | 73.8° | 74.0° | 10.0 | 66.5° | 57.9 | 31.3 | 4.5 | 43.3 | 4.2 | 11.0 | 112.1 | 69.2 | 41.5 | 57.2 |
| 17.5" | M | 29" | 42.0 | 73.4° | 74.0° | 10.5 | 66.5° | 61.5 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 116.3 | 74.7 | 44.0 | 60.9 |
| 18.5" | ML | 29" | 43.5 | 73.4° | 74.0° | 11.0 | 66.5° | 63.1 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 118.0 | 75.9 | 45.5 | 61.4 |
| 19.5" | L | 29" | 45.0 | 73.4° | 74.0° | 11.5 | 66.5° | 64.7 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 119.7 | 77.1 | 47.0 | 61.8 |
| 21.5" | XL | 29" | 50.0 | 73.4° | 74.0° | 13.5 | 66.5° | 67.8 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 123.0 | 79.1 | 49.5 | 63.7 |
| 23" | XXL | 29" | 54.0 | 73.4° | 74.0° | 15.0 | 66.5° | 70.7 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 126.1 | 81.6 | 52.0 | 65.1 |
