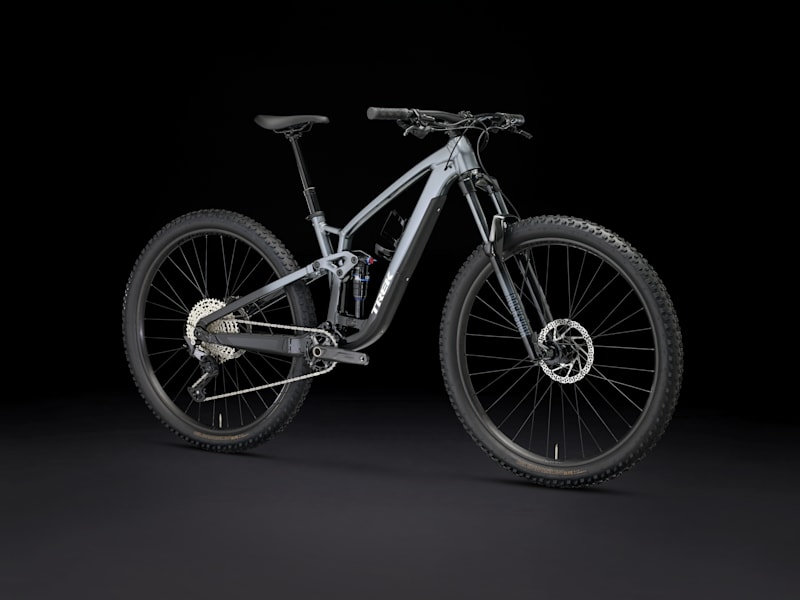

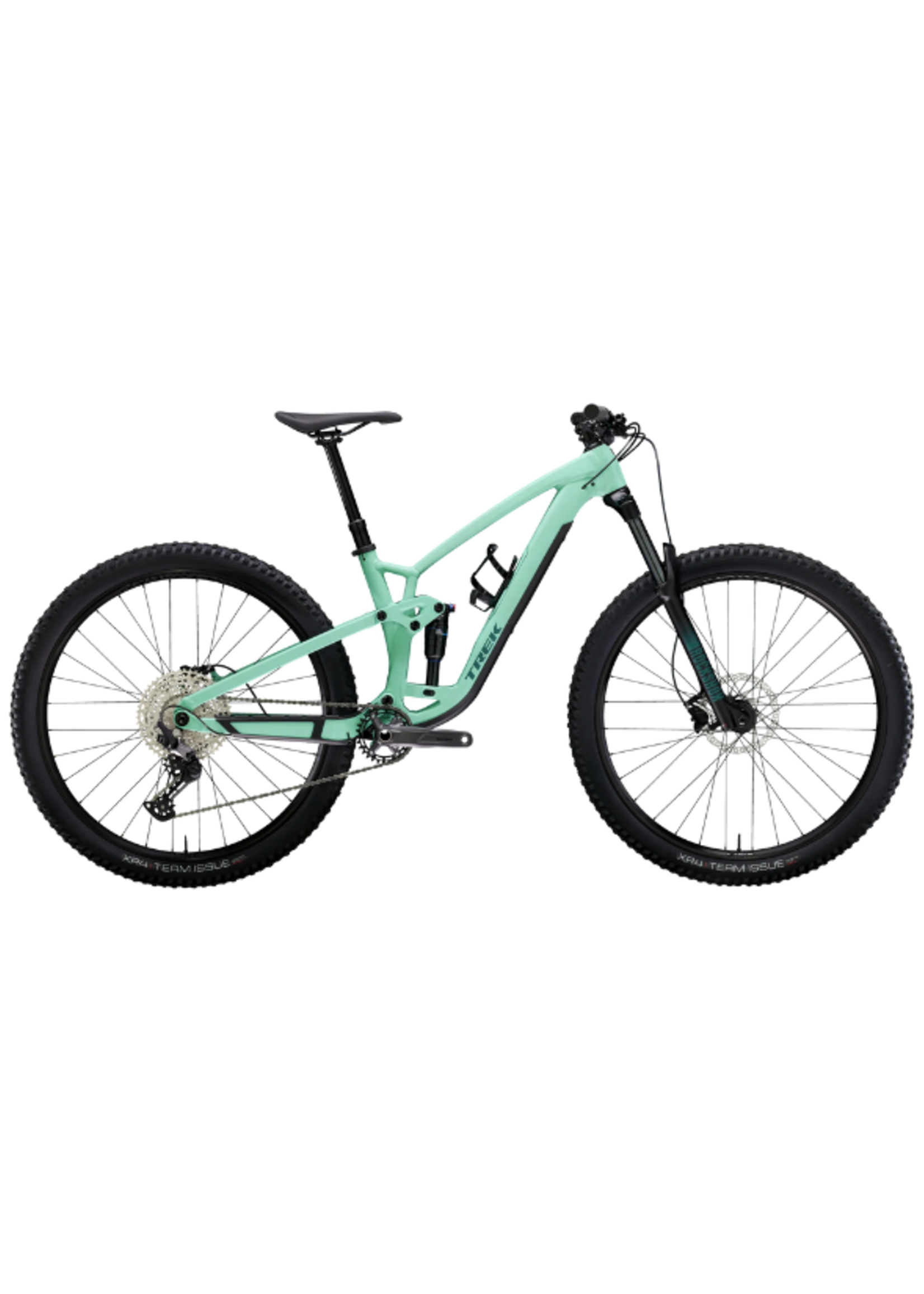

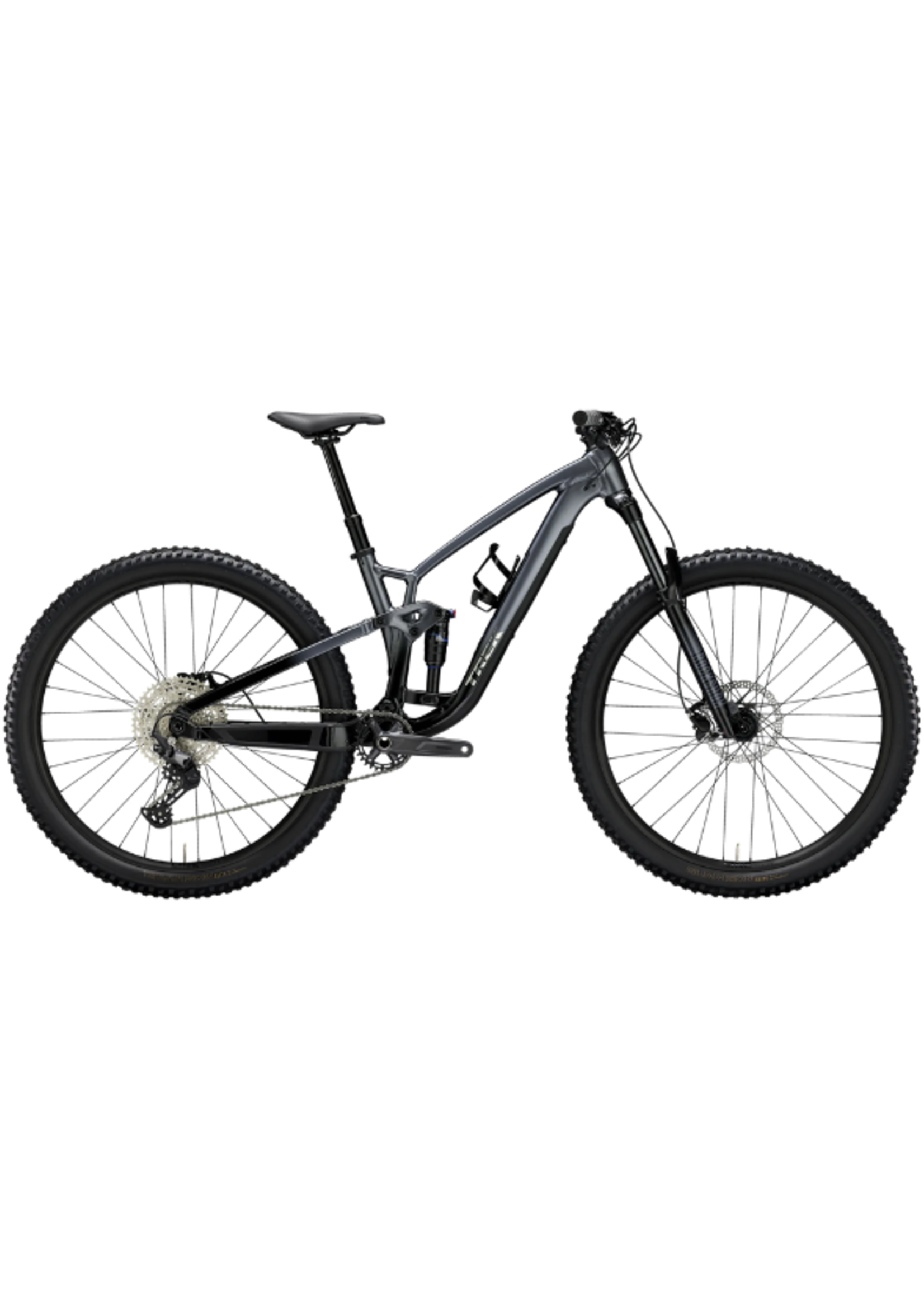

Trek Fuel EX 5 Gen 6

Fuel EX 5 is a full-suspension trail bike that's ready to handle it all. With 150mm front and 140mm rear trail-taming suspension, a Shimano 1x12 drivetrain, a dropper post for getting low on descents, and hydraulic disc brakes, Fuel EX 5 hits the mark as a high-value, high-performance mountain bike with exceptional versatility.

You're ready to go full suspension, and you want a versatile trail bike at a great value. You want a ride that's sure-footed, capable, and responsive so you can stay in control no matter where you're riding.

A lightweight aluminum frame with progressive trail geometry. A 150mm RockShox Recon Silver fork with Solo Air spring and motion control damper (140mm on XS and S), 140mm of rear travel with an X-Fusion Pro 2 shock, a durable 12-speed Shimano Deore drivetrain, dropper post, and hydraulic disc brakes.

You get full suspension performance without the sticker shock. Fuel EX 5 has the same frame tech and features as its pricier partners, with parts chosen to keep the price tag low and stoke level high.

Fuel EX Gen 6 gives you 140/150mm of travel and slack, adjustable geometry for an extra capable ride, plus, in-frame storage on all models — even alloy
We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝, and sizes M and up get 29˝ wheels
The dropper post lets you lower your saddle on the fly so it's out of the way on descents
The RockShox fork's Solo Air spring can easily be adjusted for a specific rider weight, and it's lighter than a coil spring
Its tubeless-ready wheels and tires will boost traction and help to reduce flat tires on the ride

TREK FUEL EX 5 GEN 6 BIKE DETAILS:

Frame	Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
*Fork	Size: XS , S RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, Maxle Stealth, 140mm travel
	Size: XS , S RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 140mm travel
	Size: S , M , ML , L , XL , XXL RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, Maxle Stealth, 150mm travel
	Size: M , ML , L , XL , XXL RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 150mm travel

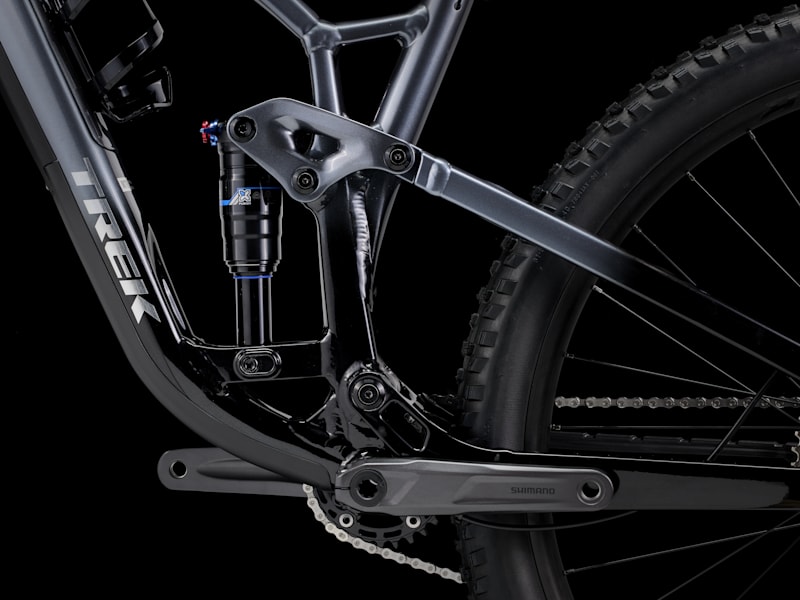

Shock	X-Fusion Pro 2, 2-position damper, 185mm x 55mm
Max compatible fork travel	160mm

Wheels

Hub front	Bontrager alloy, 6-bolt, Boost110, 15mm thru axle
Hub rear	Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Skewer rear	Bontrager Switch thru axle, removable lever
Rim	Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve
*Tire	Size: XS , S Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40''
*Tire	Size: S , M , ML , L , XL , XXL Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40''
Tire part	Bontrager TLR sealant, 6oz
Rim strip	Bontrager TLR
Max tire size	Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer

Drivetrain

Shifter	Shimano Deore M6100, 12 speed
Rear derailleur	Shimano Deore M6100, long cage
Crank	Shimano MT512, 30T ring, 55mm chainline, 170mm length
Bottom bracket	Shimano BB-MT501 BSA
Cassette	Shimano Deore M6100, 10-51, 12 speed
Chain	Shimano Deore M6100, 12 speed
Max chainring size	1x: 34T round, 32T oval, min 28T

Components

*Saddle	Size: XS , S , M , ML , L , XL , XXL Bontrager Arvada, steel rails, 138mm width
*Saddle	Size: XS , S , M , ML , L , XL , XXL Bontrager Verse Short, stainless steel rails
*Seatpost	Size: XS , S TranzX JD-YSI-22PLQ, 100mm travel, internal routing, 34.9mm, 346mm length
	Size: M , ML TranzX JD-YSI-22PLQ, 150mm travel, internal routing, 34.9mm, 454mm length
	Size: L , XL , XXL TranzX JD-YSI-22PLQ, 170mm travel, internal routing, 34.9mm, 497mm length
Handlebar	Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips	Bontrager XR Trail Comp, nylon lock-on
*Stem	Size: XS , S Bontrager Comp, 31.8mm, 7 degree, 35mm length
*Stem	Size: M , ML , L , XL , XXL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Headset	Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
Brake	Shimano hydraulic disc, MT201 lever, MT200 caliper
Brake rotor	Shimano RT56, 6-bolt, 180mm
Rotor size	Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

Accessories

Bag	Bontrager BITS Internal Frame Storage Bag

Weight

Weight	M - 15.80 kg / 34.84 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

How tall are you?

To measure your height, stand straight up, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

What is your inseam?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inseam measurement. Your inseam is very important to your final bike size so please measure carefully.

size-table
Size	Rider Height	Inseam
XS	145 - 155 cm / 4'9" - 5'1"	69 - 73 cm / 27" - 29"
S	155 - 165 cm / 5'1" - 5'5"	74 - 78 cm / 29" - 31"
M	165 - 176 cm / 5'5" - 5'9"	79 - 83 cm / 31" - 33"
ML	173 - 180 cm / 5'8" - 5'11"	81 - 86 cm / 32" - 34"
L	177 - 188 cm / 5'10" - 6'2"	84 - 89 cm / 33" - 35"
XL	188 - 195 cm / 6'2" - 6'5"	89 - 91 cm / 35" - 36"
2XL	195 - 203 cm / 6'5" - 6'8"	91 - 97 cm / 36" - 38"

		XS	S 27.5	S 29	M	ML	L	XL	XXL
A	Wheelsize	27.5	27.5	29	29	29	29	29	29
B	Frame Reach	400.2	430.2	425.0	450.0	470.0	485.0	515.0	545.0
C	Effective Top Tube	516.2	550.5	553.8	584.1	607.4	626.9	661.8	696.6
D	Seat Tube	360.0	380.0	380.0	410.0	420.0	435.0	470.0	500.0
E	Seat Tube Angle	70.8	70.8	70.8	70.8	70.8	70.8	70.8	70.8
F	Effective Seat Tube Angle	78.6	78.2	78.6	78.2	77.5	77.2	76.6	76.0
G	Frame Stack	574.1	574.1	612.3	616.8	616.8	621.3	634.9	648.4
H	Head Tube Length	95.0	95.0	95.0	100.0	100.0	105.0	120.0	135.0
I	Head angle	64.5	64.5	64.5	64.5	64.5	64.5	64.5	64.5
J	Fork Axle-To-Crown	533.0	533.0	561.0	561.0	561.0	561.0	561.0	561.0
K	Bottom Bracket Height	332.0	332.0	335.0	335.0	335.0	335.0	335.0	335.0
L	Bottom Bracket Drop	25.0	25.0	38.0	38.0	38.0	38.0	38.0	38.0
M	Chainstay Length	435.0	435.0	435.0	435.0	440.0	440.0	445.0	450.0
N	Wheelbase	1144.8	1174.8	1185.9	1213.0	1233.1	1250.2	1286.7	1323.2
O	Standover	716.8	723.8	736.8	736.8	741.8	747.8	766.8	773.8
P	Offset	44.0	44.0	44.0	44.0	44.0	44.0	44.0	44.0
Q	Trail	121.6	121.6	129.2	129.2	129.2	129.3	129.3	129.3
