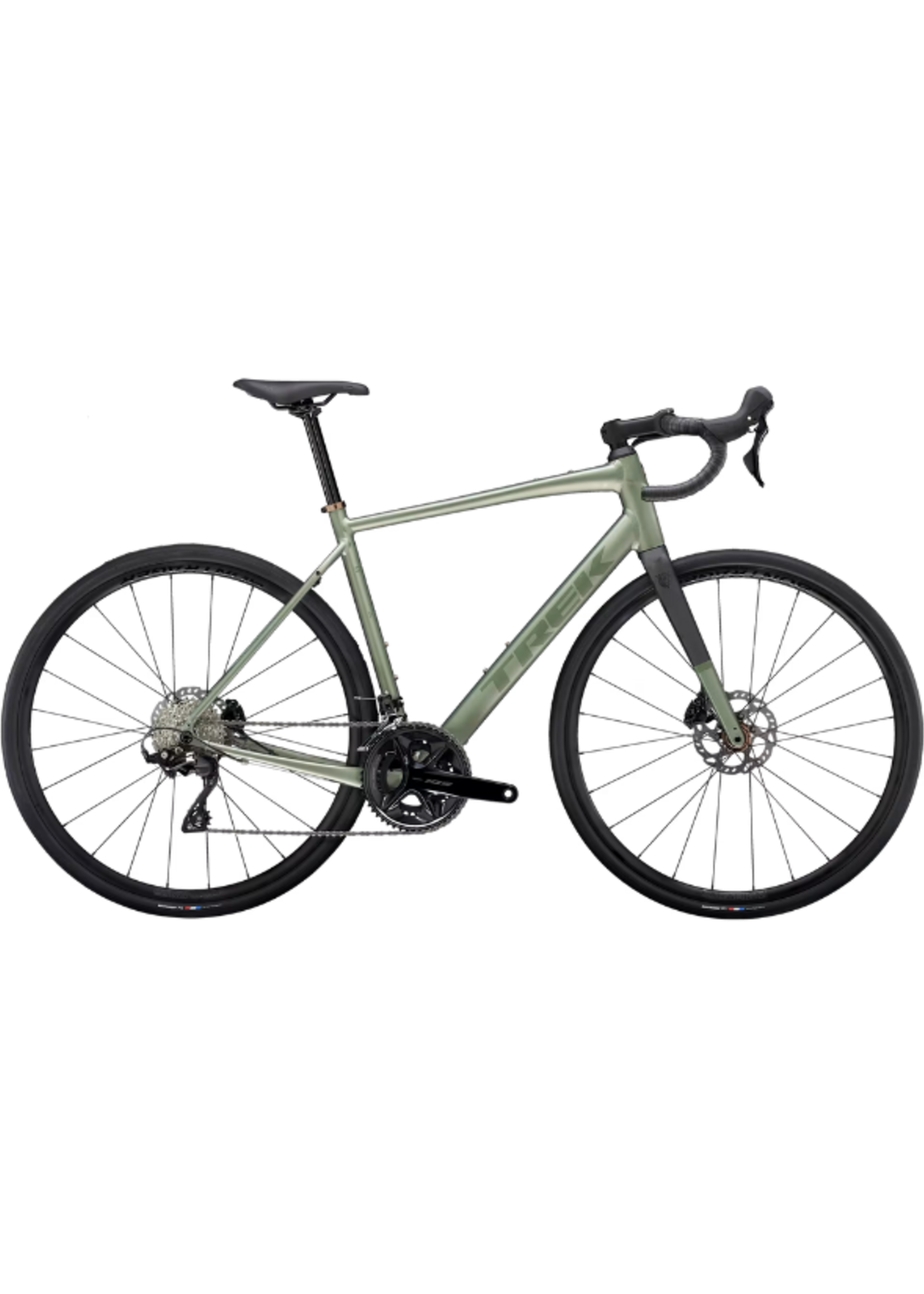

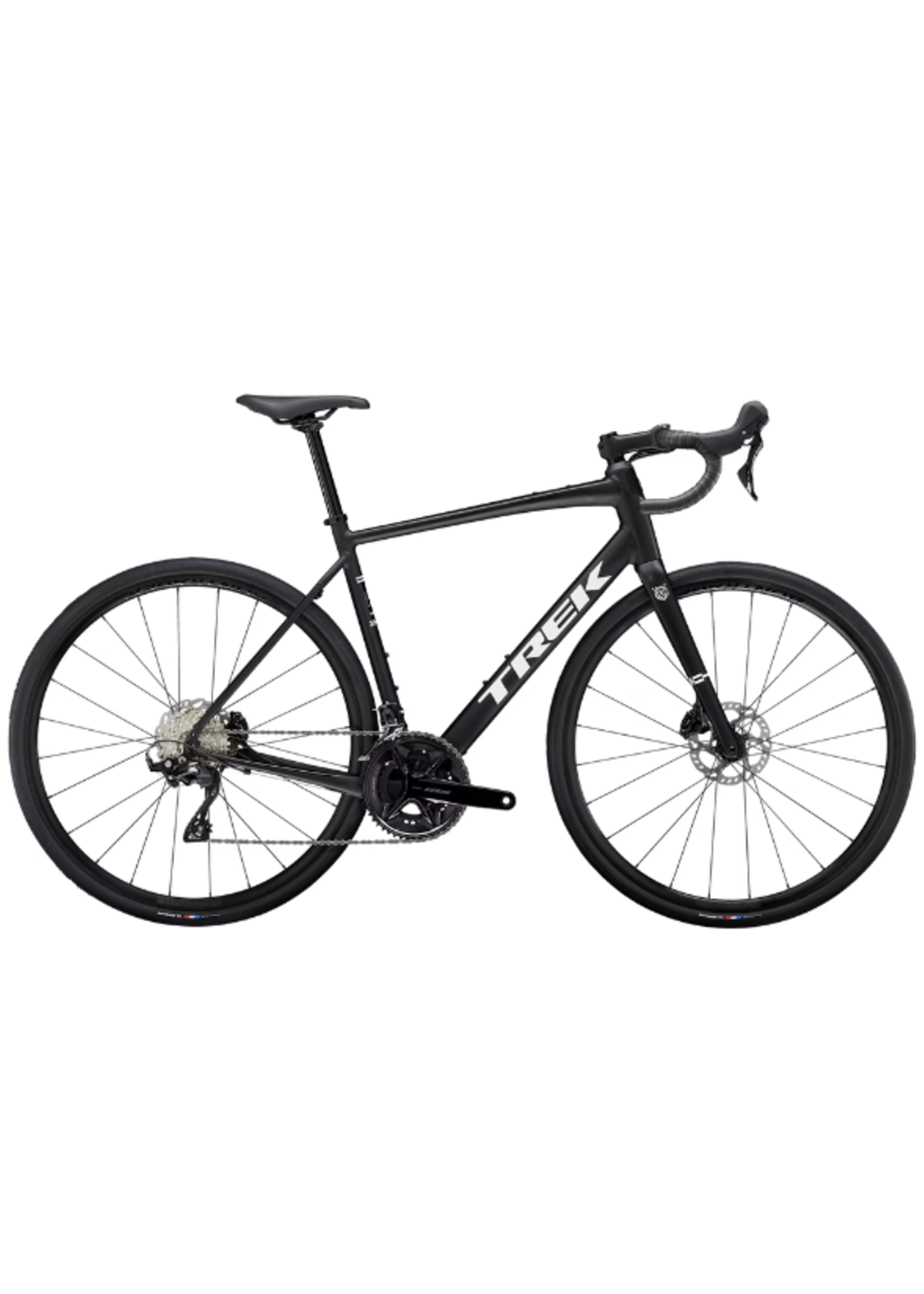

Domane AL 5 is a speedy and versatile road bike that's a perfect starting point for anyone looking to get into road riding. With an Alpha Aluminum frame, clearance for larger tires, a 12-speed Shimano 105 drivetrain, top tube mounts, and an all-day road comfort geometry — Domane AL 5 is perfect for casual pedaling, group rides, fast commutes, and even venturing beyond paved paths to most gravel roads.

Components

Specifications

*Saddle	Size: 56, 58, 49, 61, 52, 54Verse Short, steel rails, 145mm width
*Seatpost	Size: 49 Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length
	Size: 56, 58, 61, 52, 54 Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
*Handlebar	Size: 49, 52Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
	Size: 56, 58, 54Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
	Size: 61Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
*Handlebar Tape	Size: 56, 58, 49, 61, 52, 54 Bontrager Supertack Perf tape
*Stem	Size: 49Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
	Size: 52, 54Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
	Size: 56, 58Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
	Size: 61Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
*Brake	Size: 56, 58, 49, 61, 52, 54 Shimano 105 hydraulic disc, flat mount
*Brake Rotor	Size: 56, 58, 49, 61, 52, 54 Shimano RT70, centerlock, 160mm
Rotor size	Max brake rotor sizes: 160mm front & rear

How tall are you?

To measure your height, stand straight up, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

What is your inseam?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inseam measurement. Your inseam is very important to your final bike size so please measure carefully.

Sizing

size-table

Size	Rider Height	Inseam
44	150 - 153 cm 4'11" - 5'0"	71 - 73 cm 28" - 29"
49	156 - 163 cm 5'1" - 5'4"	74 - 77 cm 29" - 30"
52	163 - 168 cm 5'4" - 5'6"	76 - 79 cm 30" - 31"
54	168 - 174 cm 5'6" - 5'9"	78 - 82 cm 31" - 32"
56	174 - 180 cm 5'9" - 5'11"	81 - 85 cm 32" - 33"
58	180 - 185 cm 5'11" - 6'1"	84 - 87 cm 33" - 34"
61	185 - 191 cm 6'1" - 6'3"	86 - 90 cm 34" - 35"



Geometry

All measurements provided in cm unless otherwise noted.

Sizing table

Frame size number	Wheel size	A — Seat tube	B — Seat tube angle	C — Head tube length	D — Head angle	E — Effective top tube	G — Bottom bracket drop	H — Chainstay length	I — Offset	J — Trail	K — Wheelbase	L — Standover	M — Frame reach	N — Frame stack
49cm	700c	44.0	74.6°	12.3	70.8°	51.6	8.0	42.5	5.3	6.6	100.1	71.7	36.8	54.0
52cm	700c	47.5	74.2°	14.5	71.3°	53.0	8.0	42.0	5.3	5.9	100.3	73.5	37.1	56.1
54cm	700c	50.0	73.7°	16.0	71.3°	54.2	8.0	42.0	5.3	5.9	101.0	75.4	37.4	57.5
56cm	700c	52.5	73.3°	17.5	71.9°	55.4	7.8	42.0	4.8	6.1	101.8	77.6	37.7	59.1
58cm	700c	54.8	73.0°	19.5	72.0°	56.7	7.8	42.5	4.8	6.0	102.2	79.6	38.0	61.1
61cm	700c	57.6	72.7°	23.5	72.1°	58.6	7.5	42.5	4.8	6.3	103.8	84.2	38.5	64.6
