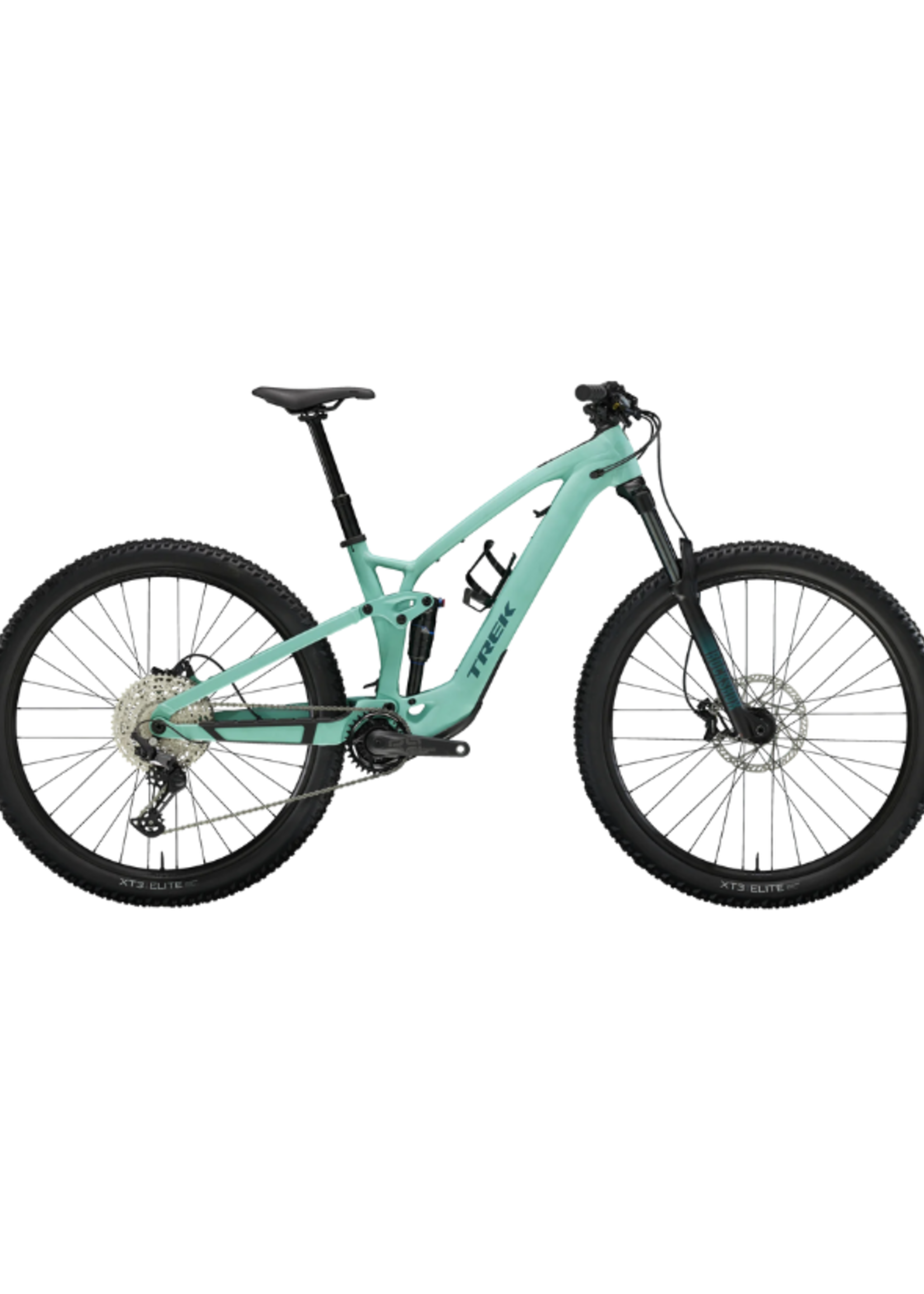

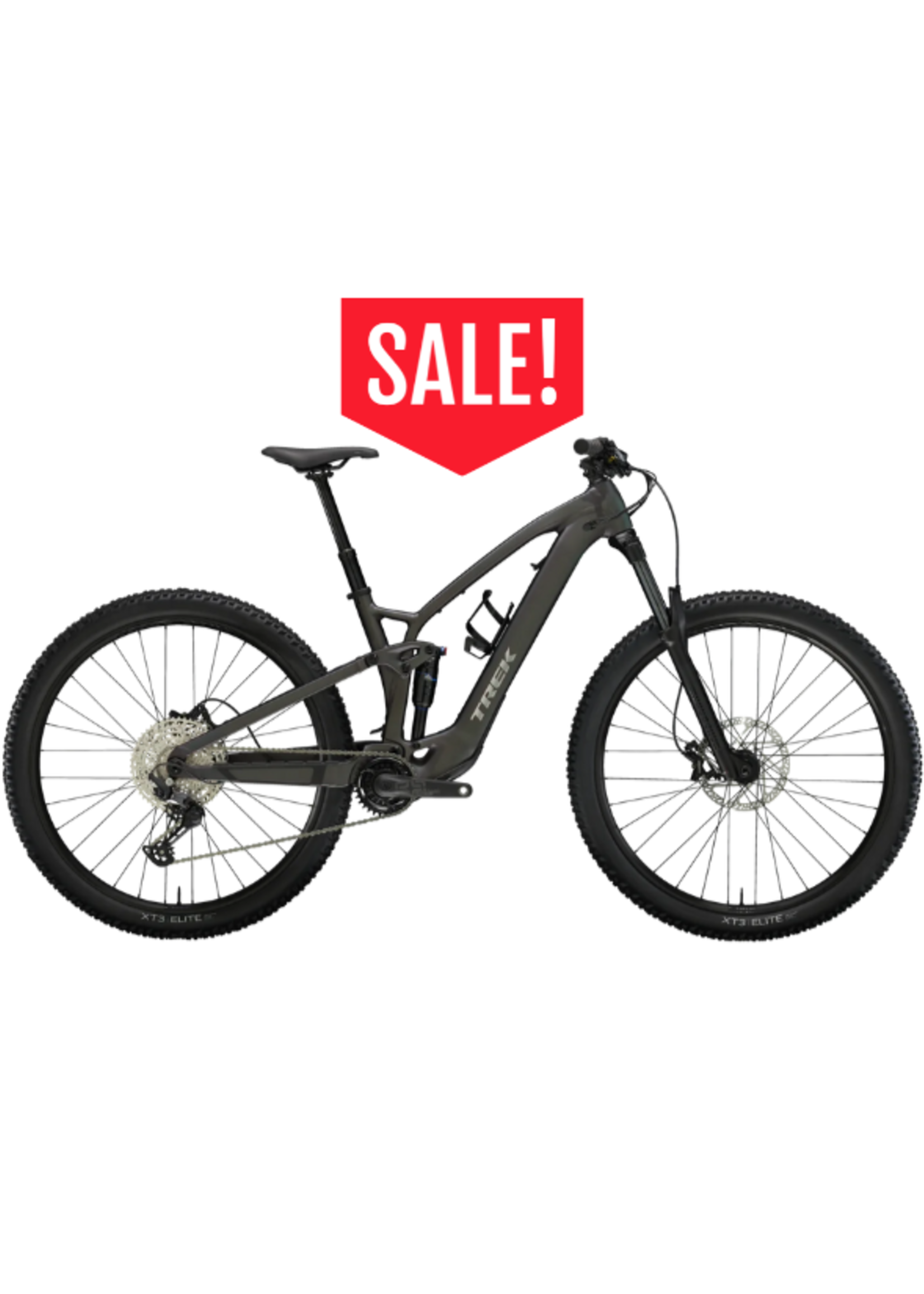

Fuel EXe 5

Fuel EXe 5 is an aluminum electric mountain bike that brings all the tech of its carbon counterpart into a pocket-friendly package. It boasts the same tiny-but-mighty drive system that quietly disappears under you, plus a sleek display and remote. But what really makes this bike excel is its true trail bike feel that handles just like a traditional mountain bike, just with a little extra power.

You're looking for a bike that makes climbs a little sweeter without sacrificing the handling on descents. You want to enter the world of light e-mountain bikes without blowing through your entire bank account, and don't mind upgrading some of the parts later.

An Alpha Platinum Aluminum frame with TQ's HPR50 harmonic pin ring drive system, a fully-encased 360Wh removable battery, and smart charging port. An integrated LED display and handlebar remote that are easy to use on the fly. 150mm of air-sprung RockShox Recon Silver Solo front suspension with motion control damper and a lockout, and 140mm X-Fusion Pro 2 rear suspension with 2-position damper. Plus, 12-speed Shimano Deore shifting, hydraulic disc brakes, and a dropper post.

If you're ready to add power to your trail rides without breaking the bank, Fuel EXe 5 is your answer. It gives you all the tech of its higher-end carbon sibling with parts you can upgrade over time.

You get all the fun of a trail bike, plus a little extra push to help you crush climbs and save some juice for the descent
Its tiny but mighty TQ motor is tuned for the trail, keeping things quiet so you can stay in the moment, and ramps up power with you for a natural ride feel
The integrated display, charging port, and controls are simple to use, sleek, and intuitive
You can tweak your geometry with Mino Link, or add an adjustable angle headset to take even more control
If you want to ride farther you can easily add a range extender that fits neatly in your bottle cage

Frame	Alpha Platinum Aluminum, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
Fork	RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, Maxle Stealth, 150mm travel
Shock	X-Fusion Pro 2, 2-position damper, 205mm x 60mm
Max compatible fork travel	160mm

Wheels

Hub front	Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
Hub rear	Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Skewer rear	Bontrager Switch thru axle, removable lever
Rim	Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve
Tire	Bontrager XT3 Elite, wire bead, 60 tpi, 29x2.40''
Rim strip	Bontrager TLR
Max tire size	Frame: 29x2.50", Fork: See manufacturer

E-system

Battery	TQ 360Wh
Charger	TQ 4A charger
Computer	TQ LED display with Bluetooth & ANT+ connectivity
Motor	TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

Drivetrain

Shifter	Shimano Deore M6100, 12 speed
Rear derailleur	Shimano Deore M6100, long cage
Crank	Ethirteen Espec Plus, 165mm length
Chainring	Ethirteen Espec, 32T alloy ring, 55mm chainline
Cassette	Shimano Deore M6100, 10-51, 12 speed
Chain	Shimano Deore M6100, 12 speed
Max chainring size	1x: 34T, min 30T

Components

Saddle	Bontrager Arvada, steel rails, 138mm width
*Seatpost	Size: S TranzX JD-YSI-22PLQ, 100mm travel, internal routing, 34.9mm, 346mm length
	Size: M TranzX JD-YSI-22PLQ, 150mm travel, internal routing, 34.9mm, 454mm length
	Size: L, XL TranzX JD-YSI-22PLQ, 170mm travel, internal routing, 34.9mm, 497mm length
Handlebar	Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
Grips	Bontrager XR Trail Comp, nylon lock-on
Stem	Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Headset	Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
Brake	Tektro HD-M745 hydraulic disc
Brake rotor	Tektro, 6-bolt, 203mm
Rotor size	Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

Weight

Weight	M - 20.98 kg / 46.26 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

How tall are you?

To measure your height, stand straight up, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

What is your inseam?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inseam measurement. Your inseam is very important to your final bike size so please measure carefully.

size-table
Size	Rider Height	Inseam
S	155 - 165 cm 5'1" - 5'5"	74 - 78 cm 29" - 31"
M	165 - 176 cm 5'5" - 5'9"	79 - 83 cm 31" - 33"
L	177 - 188 cm 5'10" - 6'2"	84 - 89 cm 33" - 35"
XL	188 - 195 cm 6'2" - 6'5"	89 - 91 cm 35" - 36"

All measurements provided in cm unless otherwise noted.

Sizing table
Frame size number	Frame size letter	Geometry position	Wheel size	A — Seat tube	B — Seat tube angle	Effective seat tube angle	C — Head tube length	D — Head angle	E — Effective top tube	F — Bottom bracket height	G — Bottom bracket drop	H — Chainstay length	I — Offset	J — Trail	K — Wheelbase	L — Standover	M — Frame reach	N — Frame stack
15.5"	S	High	29"	38.0	69.3°	77.3°	10.0	65.3°	57.2	34.1	3.2	43.8	4.4	12.4	118.7	73.2	43.4	61.6
15.5"	S	Low	29"	38.0	68.8°	76.8°	10.0	64.8°	57.3	33.4	3.9	44.0	4.4	12.7	118.8	72.6	42.8	62.0
17.5"	M	High	29"	41.0	69.8°	77.3°	11.0	65.3°	59.9	34.1	3.2	43.8	4.4	12.4	121.6	73.3	45.9	62.5
17.5"	M	Low	29"	41.0	69.3°	76.8°	11.0	64.8°	60.0	33.4	3.9	44.0	4.4	12.7	121.7	72.7	45.3	62.9
19.5"	L	High	29"	43.5	70.8°	77.3°	11.0	65.3°	62.9	34.1	3.2	43.8	4.4	12.4	124.6	73.9	48.9	62.5
19.5"	L	Low	29"	43.5	70.3°	76.8°	11.0	64.8°	63.0	33.4	3.9	44.0	4.4	12.7	124.7	73.3	48.3	62.9
21.5"	XL	High	29"	47.0	71.3°	77.3°	12.0	65.3°	65.6	34.1	3.2	43.8	4.4	12.4	127.6	75.9	51.4	63.4
21.5"	XL	Low	29"	47.0	70.8°	76.8°	12.0	64.8°	65.8	33.4	3.9	44.0	4.4	12.7	127.6	75.3	50.8	63.8
