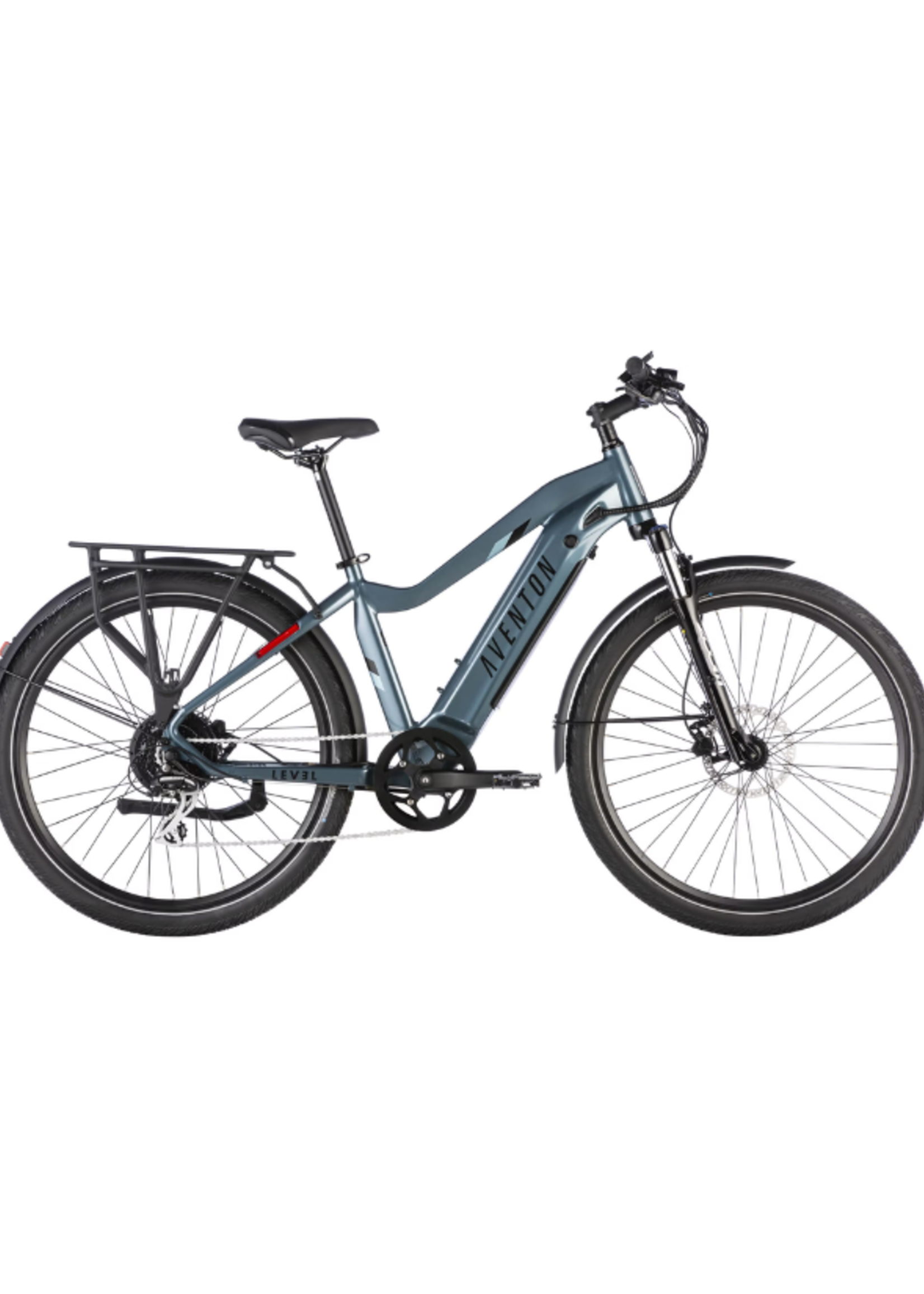

Aventon Level.2 has a top speed of 28mph with up to a 60 mile range. Has a torque senor to determine the power while pedaling. Also has a throttle.

Technical Specifications

MOTOR 750W (Peak) 500W (Sustained) Brushless Rear Hub Motor	THROTTLE Throttle on demand - Throttle from a complete stop	DISPLAY LCD Smart Easy Read Display with Backlight, Colorful screen with app
SPEED Up to 28 MPH on Pedal Assist and 20 MPH on Throttle	BATTERY Removable Internal Lithium-ion 48V, 14Ah (672Wh)	SENSORS Torque Sensor
PEDAL ASSIST 5 Levels	CHARGER 48V 3 Amp Fast Charger, 4-5 Hour Charging	RANGE Up To 60 Miles*
FRAME 6061 Double-Butted Aluminum Alloy with Internal Battery	WEIGHT 53lbs	PEDALS 9/16" Alloy Platform
FORK Coil Spring Suspension, Thru-axle, 65mm travel with lockout	WEIGHT LIMIT Maximum Payload Capacity: 300 lbs	KICKSTAND Included, Rear Mount
BOTTOM BRACKET Square Taper, Sealed, Torque Sensor	CRANKSET 170mm w/ 46 T	REAR DERAILLEUR 8 Speed
CASSETTE 12-32T, 8 Speed Cassette	SHIFT LEVER 8 Speed	BRAKES Hydraulic Disc Brakes, 180mm Rotors
CHAIN 122 Link, 8 Speed	RIM Double Wall Aluminum 36h Front & Rear	SPOKES Black Stainless 13G Front / 12G Rear
TUBES Butyl Rubber, Schrader Valve	HUBS 36H Disc Thru-axle Front, Nutted Rear	TIRES 27.5” x 2.1” Hybrid Tires, Reflective Sidewalls
SADDLE Aventon by Velok	SEATPOST Aluminum Alloy, 27.2mm, 2-Bolt Clamp	STEM Threadless, 31.8mm, 7 Degree Rise
SEAT CLAMP 31.8 mm Quick Release	HANDLEBARS Aluminum 31.8mm, 680mm	HEADSET Sealed Bearing Headset
GRIPS Ergonomic Comfort

The Level.2 comes out of the box as a Class II ebike, with pedal assist and throttle going up to 20 MPH . It can be unlocked to a Class III ebike and can go up to 28 MPH on pedal assist. The Level.2 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited.

Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain or submerged or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike.

*Using PAS 1 throughout flat terrain with a rider weight of 160 lb.

Size & Fit

Level comes in 2 sizes to suit most adults.

S/M 4'11" - 5'7"

M/L 5'8" - 6'2"

Frame Size	S/M	M/L
Height	4'11" - 5'7"	5'8" - 6'2"
Top Tube Length	572mm	613mm
Reach	373mm	404mm
Head Tube Length	120mm	130mm
Standover Height	477mm	459mm
Wheelbase	1095mm	1130mm
Min Saddle Height	810mm	875mm
Max Saddle Height	975mm	1065mm
