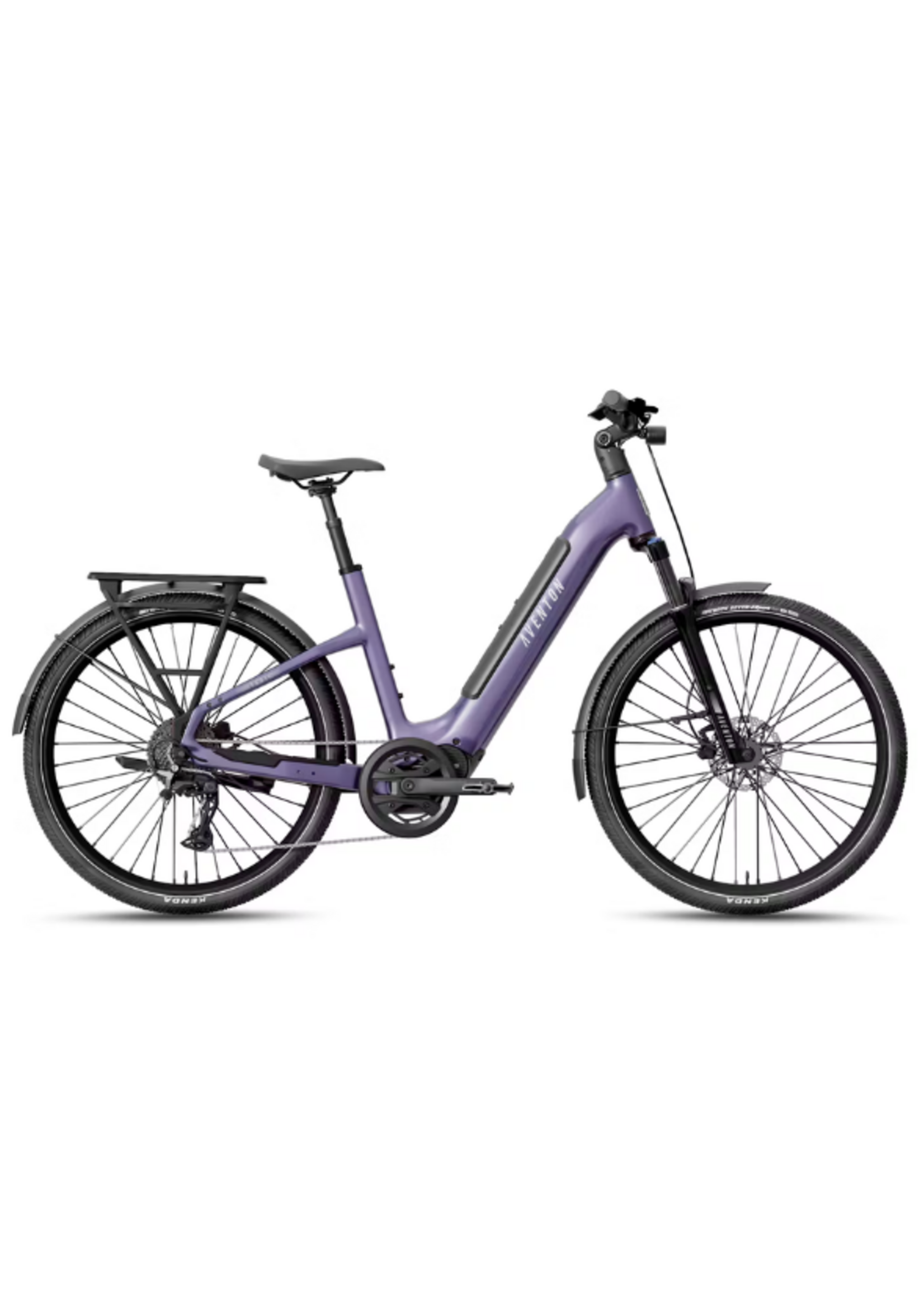

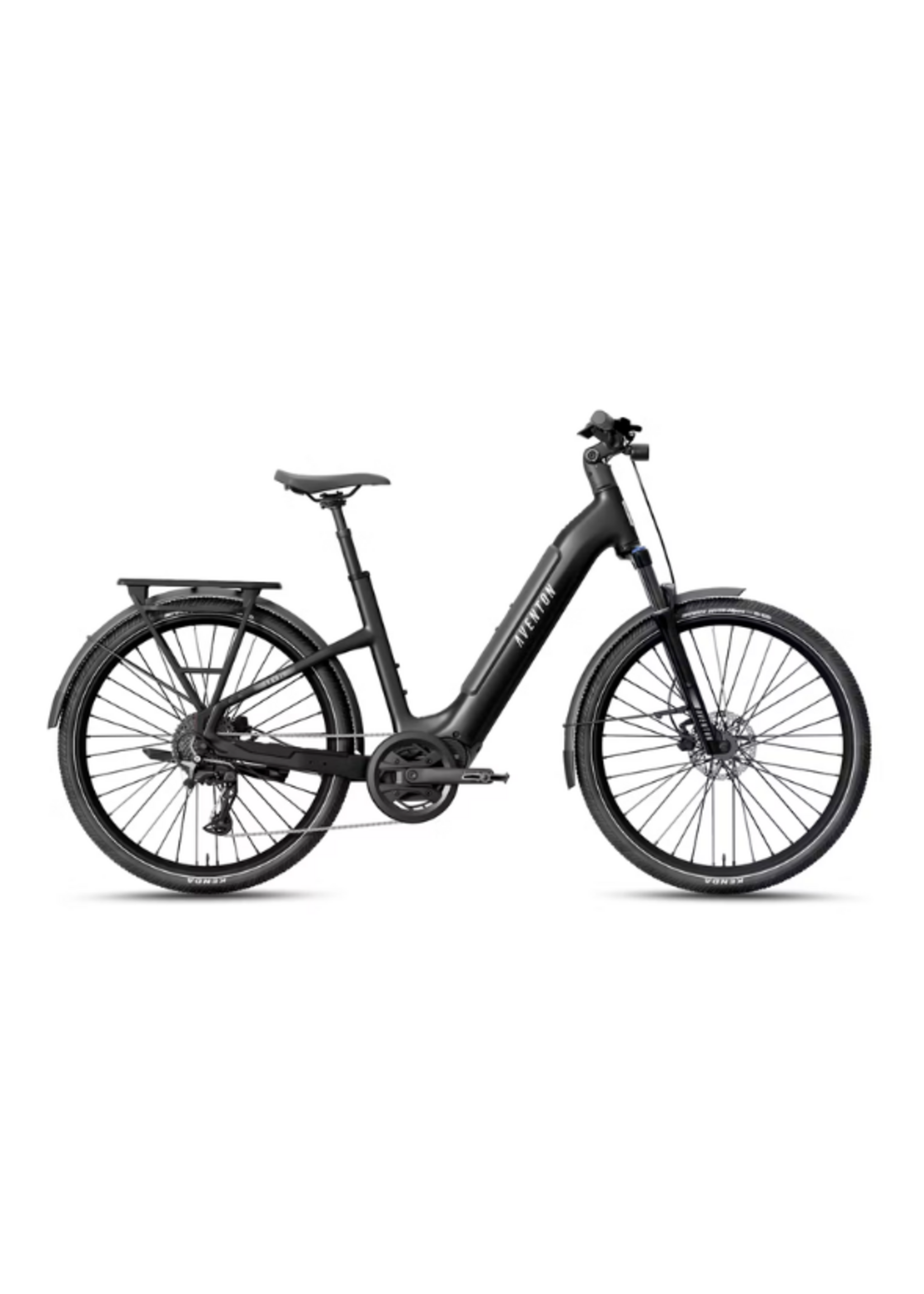

The Level 4 ADV elevates the commuting experience with mid-drive performance and refined control.

Powered by Aventon’s Ultro S motor with 100Nm of torque and paired with a Shimano CUES 10-speed drivetrain featuring Aventon’s E-Shifter and Autoshift technology, it delivers a natural pedaling feel and efficient power delivery across varied terrain.

The ADV adds lightweight balance, responsive handling, and a premium feel, making it ideal for riders who want performance and sophistication without complexity.

For those seeking the next level of connection, comfort, and control, the Level ADV represents the pinnacle of Aventon’s commuter design.

General Info

Weight

61lbs

Total Weight Limit

300 lbs

Rider Height

Regular - 4'11"-5'7". || Large - 5'7"-6'1"

Ebike Class

Class 1 (Convertible to Class 2 and/or Class 3)

Water Resistance

Bike - IPX6 // Motor - IP67

Range - Up to 110 Miles

Safety Certifications

UL Safety Certified UL 2849

Battery Safety Certifications

Certified to UL 2271

Frameset

Frame - 6061 Aluminum

Fork

100 mm Travel, Adjustable Coil Spring with Preload Adjustment and Lockout, 15x100 mm Thru Axle, 43 mm Offset, Tapered Steerer Tube

Rear Spacing - 135mm

Fork Spacing - 100mm

Wheelset

Front Wheel

27.5" Double Wall Aluminum, 36H

Rear Wheel

27.5" Double Wall Aluminum, 36H

Tires

Kenda K1052, 27.5x2.2"

Ebike System

Motor

Aventon Ultro S Mid-drive Motor, 100Nm Motor Torque, 750W Peak Power

Motor Torque

100Nm

Motor Power

750W Peak

Display

A280 Center Display

Battery

Removable Lithium-Ion. 36V, 20Ah, 800Wh, Samsung 21700 58E cells

Battery Weight

8.7lbs

Throttle

Compatible, Not Included

Charger - 42V 4A charger

Charging time from 0% to 100%

5 hours

Lights

Front and rear lights integrated

Smart Features

Uphill Start Assist, E-Shift, Autoshift, Ride Tune, 4G/GPS, Unusual activity detection, E-lock, Hold Mode, Remote Notification

Brakes

Front Brake

Tektro HD-M3120 2-Piston Hydraulic Disc Brakes

Rear Brake

Tektro HD-M3120 2-Piston Hydraulic Disc Brakes

Front Brake Rotor - 180mm 6 bolt

Rear Brake Rotor - 180mm 6 bolt

Brakes - Hydraulic

Drivetrain

Rear Derailleur

Shimano Cues 10-Speed

Chainring - 48T

Crankset - 165mm ISIS Splined

Pedals - 9/16" Composite Platform

Shifter - E-Shifter

Chain

9/10/11 speed 126L

Cassette

Shimano Cues 10-Speed 11-39T

Cockpit

Saddle- -Aventon Saddle

Seatpost

Aventon Suspension Post, 30.9mm, 50mm Travel, 400mm Length

Seatpost Clamp - 34.9mm

Handlebars - 31.8mm, 680mm Width, 30mm Rise

Grips

Aventon Lock on grips
