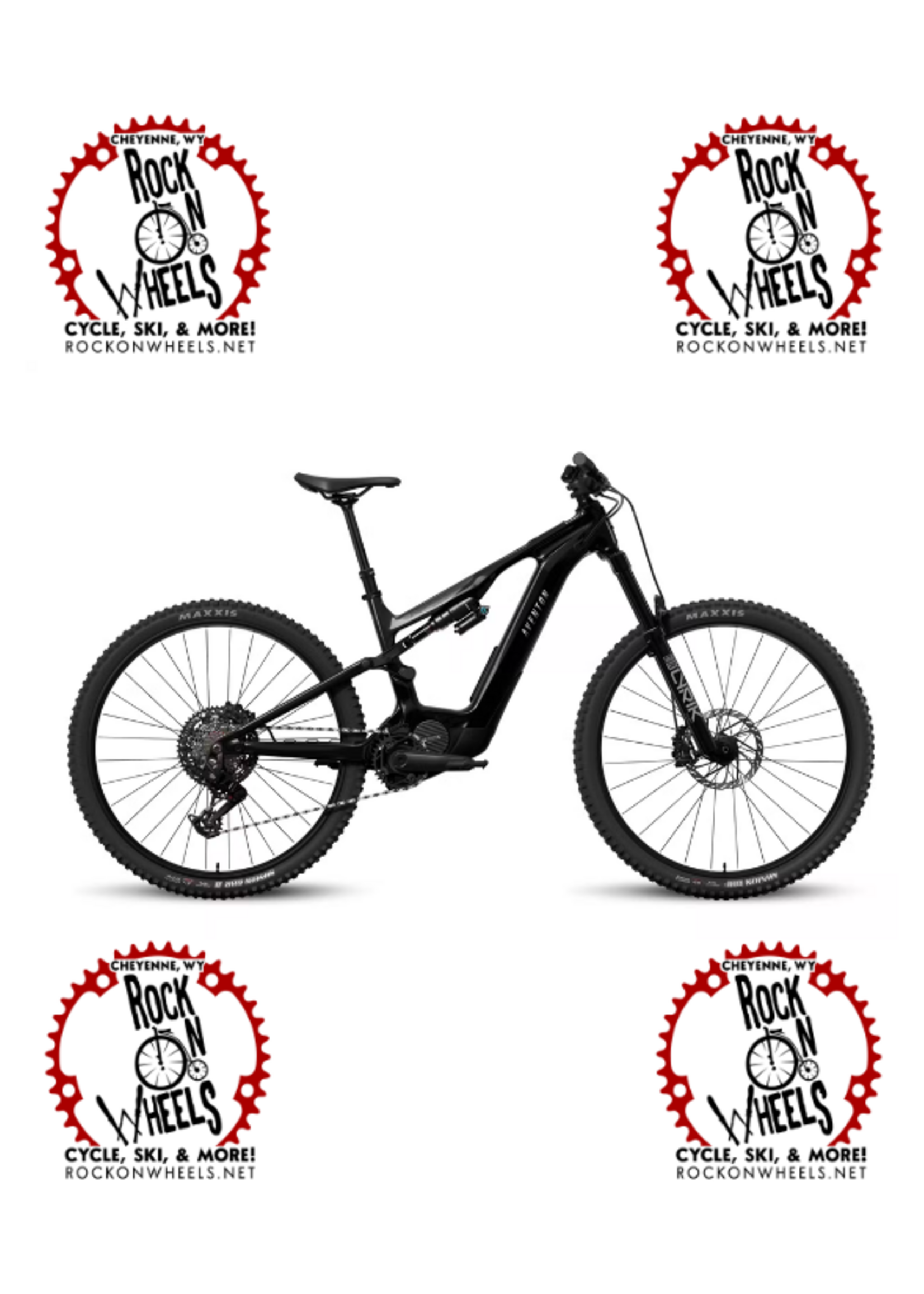

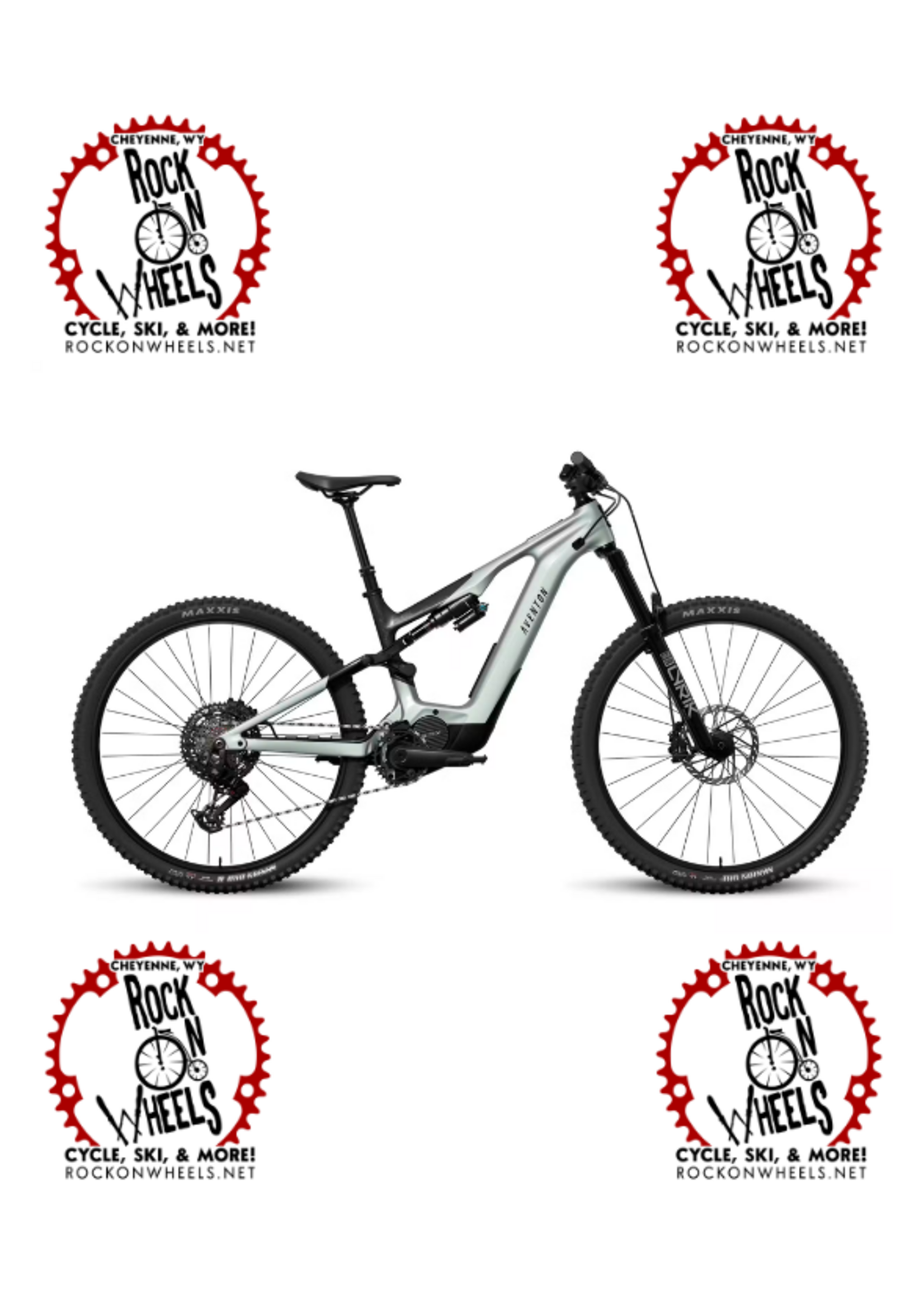

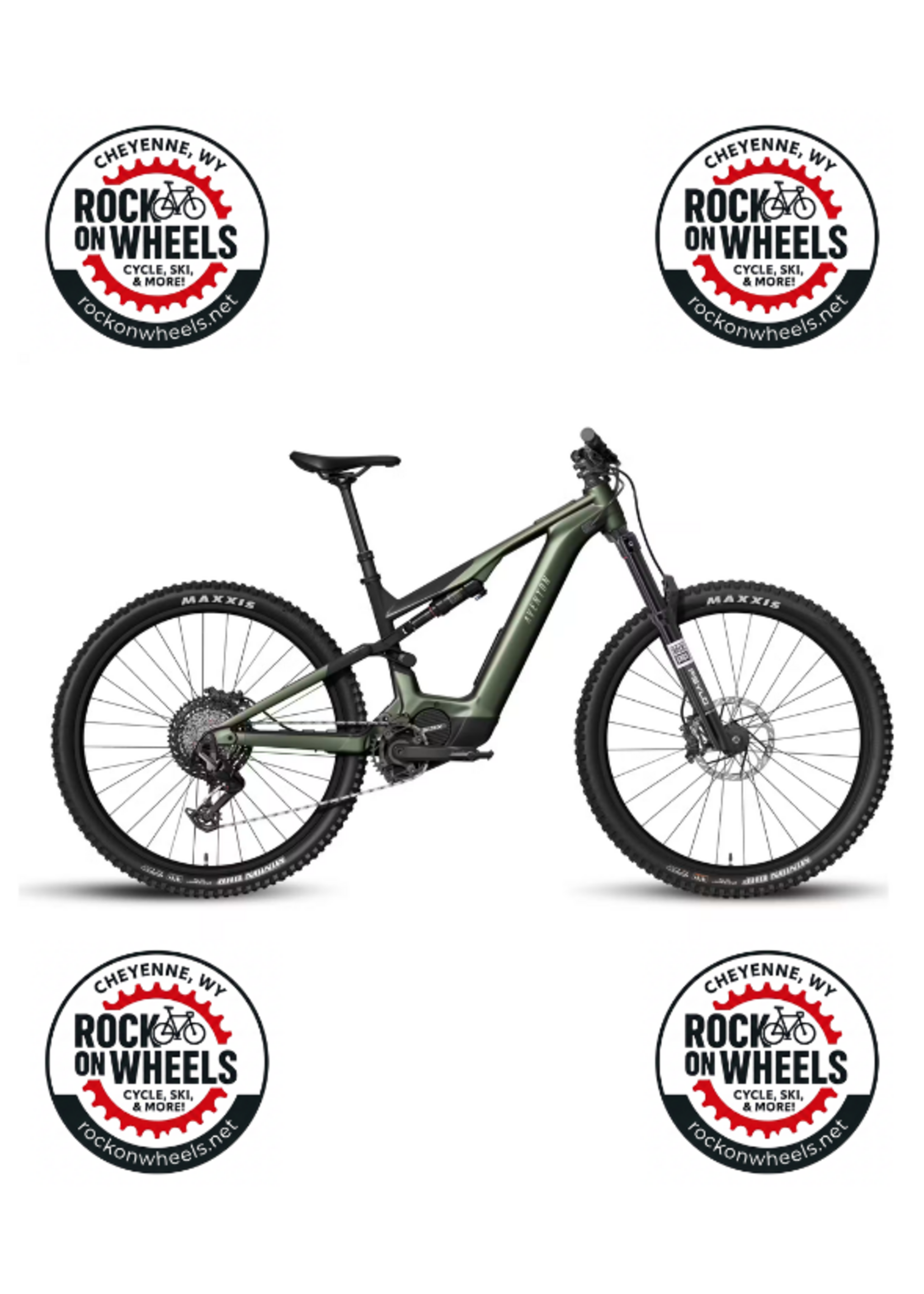

The Aventon Current EXP is an eMTB built for riders who want real trail performance with seamless tech integration and top tier power delivery. Designed around Aventon’s Ultro X mid-drive motor, 140mm of rear travel, and a 150mm fork, the Current blends modern geometry, balanced suspension, and in-house technology to deliver full capability on every climb and confidence on every descent. Its 29" wheels, 64.6 degree head angle, 76.6 degree seat tube angle, and 445 millimeter chainstays create a ride that feels planted and capable while staying responsive and playful. Every detail of the Current is designed to make trail riding more accessible and enjoyable. It features Aventon’s wireless control pad and touchscreen display for intuitive on-trail control, plus full ACU connectivity with 4G connection, GPS tracking, an integrated alarm system, and more. Riders can personalize motor performance with Ride Tune customization, and make the most of their rides with integrated tech like Wheel Lift Control and Air Time tracking. Maxxis tubeless compatible tires along with Sram and Rockshox components ensure that the Current feels ready for anything from backcountry adventures to smashing single track.
GENERAL INFO
EBIKE SYSTEM
WEIGHT 53lbs TOTAL WEIGHT LIMIT 300 lbs. RIDER HEIGHT 5'1"-6'3"
SPEED Class 1 (Convertible to Class 3). RANGE Up To 105 Miles
WATER RESISTANCE Bike - IPX6 // Motor - IP67 IDEAL USE Mountain Biking, Urban Riding
FRAMESET
FRAME Carbon Front Triangle, 6061 Aluminum Rear
Triangle
FORK Rockshox Lyrik Select 150mm (44mm
Offsett
SHOCK Rockshox Super Deluxe Select+
(210x55)
REAR SPACING 12x148mm. FORK SPACING 15x110mm
FRAME STYLE Step-Over MOTOR Aventon Ultro X MOTOR TORQUE 110Nm (120NM in BOOST Mode)
MOTOR POWER 750W Peak (850W Peak in BOOST
Mode)
SUPPORT LEVEL PERCENTAGE 400% (500% in BOOST
Mode)
DISPLAY Integrated Top Tube Display with Touch Screen
BATTERY WEIGHT 9.2 Ibs BATTERY 800Wh Integrated Battery
CHARGING TIME FROM 0% TO 100% 6 hours CHARGER 42V 4A charger
SMART FEATURES Jump Tracking, Overrun, Wheel Lift Control, 4G/GPS,
Anti-Theft, Touchscreen, BOOST mode, and AUTO Assist
mode
DRIVETRAIN
REAR DERAILLEUR SRAM S1000 Transmission (12-SPD) SHIFTER SRAM AXS Transmission Shift Pod
CHAIN SRAM Eagle 70 Transmission CHAIN GUIDE 32-34T Compatibl
CASSETTE SRAM XS-1270 T-Type 10-52° CHAINRING SRAM T-Type 34-
CHAINRING BCD 10- CRANKSET ISIS 160mm
PEDALS 9/16" Alloy Platforn
COCKPIT
WHEELSET
FRONT WHEEL 29", Double-Wall Aluminum, Tubeless Compatible, 32 Hole
REAR WHEEL 29*, Double-Wall Aluminum, Tubeless Compatible, 32 Hole
TIRES
Front: Maxxis Minion DHF 29x2.5" EXO (Tubeless Ready), Rear: Maxxis Minion DHR II, 29x2.4" EXO
(Tubeless Ready)
BRAKES
FRONT BRAKE SRAM Maven Base (Hydraulic, 4-Piston)
REAR BRAKE SRAM Maven Base (Hydraulic, 4-Piston)
FRONT BRAKE SRAM Centerline 200mm 6-Bolt
REAR BRAKE ROTOR SRAM Centerline 200mm 6-Bolt
SADDLE Selle Royal SRX
SEATPOST 31.6mm XFusion Manic Dropper Seatpost. S/M: 150mm, L/XL: 170mm
SEATPOST CLAMP 34.9mm STEM 50mm Length, 35mm Clamp
HANDLEBARS 35mm Clamp, 5° Upsweep, 7° Backsweep. S/M: 780mm, 20mm Rise.
L/XL: 800mm, 30mm Rise
HEADSET ZS56 Upper/Lower GRIPS Aventon Lock on grips
