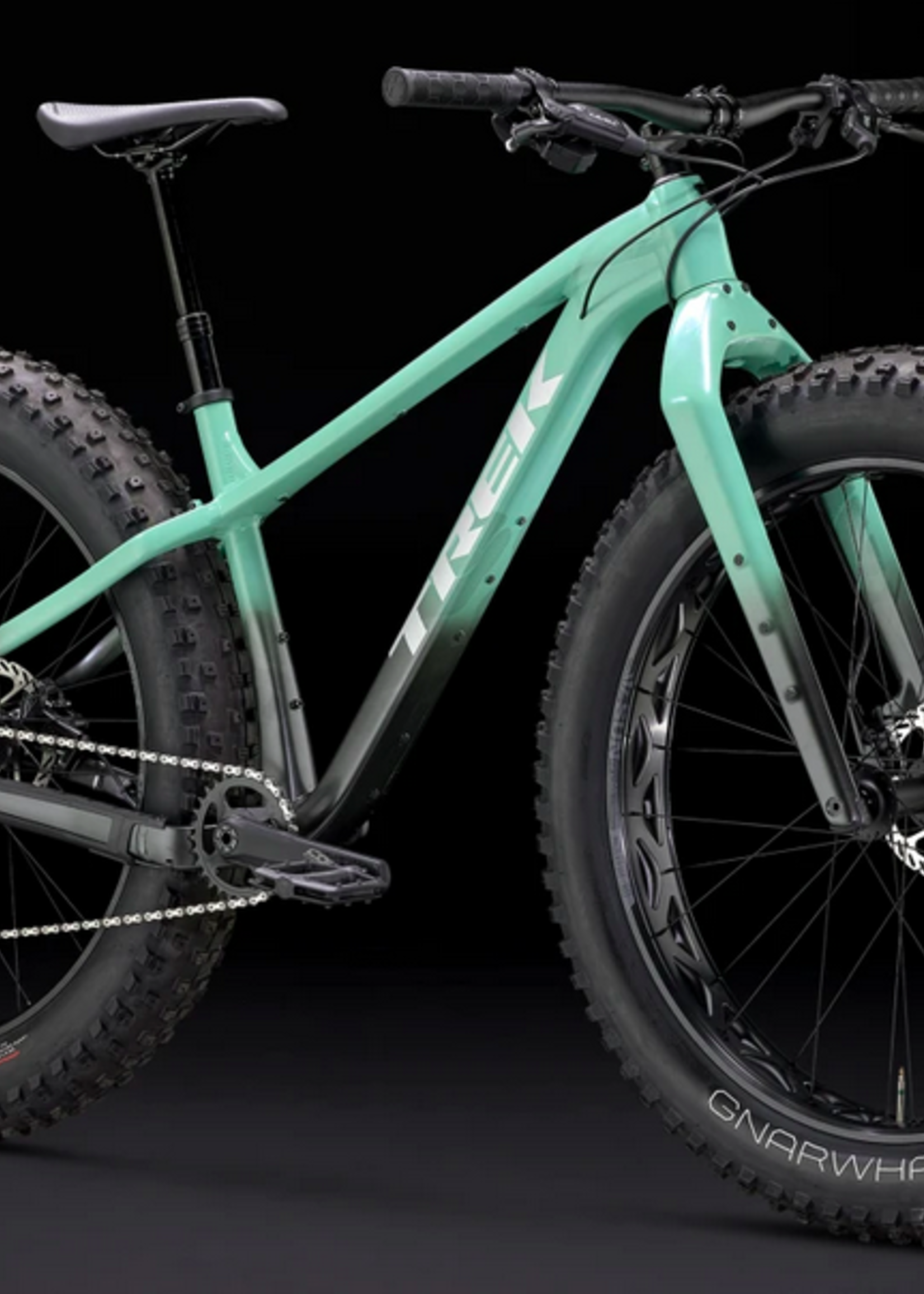

Trek Farley 5
Fat Bike
Farley 5 is the ultimate go-anywhere fat bike.
Arctic tundra? Farley's game.
Sandy desert singletrack? Farley's lofty tires will keep you afloat.
A winter bikepacking mission through rugged terrain? Sounds like a walk in the park.
Farley's geometry is more capable than ever with a slacker head tube angle for more stability and a steeper seat tube angle for pedaling efficiency and comfortable reach. Up front, its carbon fork is loaded with tons of mounts, so you'll be able to load up gear for the adventure of your dreams.
You don't want to limit your adventures to one season. Come snow, sand, or singletrack, you're ready to rip and want a bike that can handle it all. You like your days long, and your adventures longer. You appreciate the thoughtful details, like plenty of mounts for hauling a week's worth of gear to keep you going far beyond the last cell tower.
A rugged alloy frame with geometry that's built to handle it all. Huge 4.5-inch tires that keep you floating over snow, sand, mud, and dirt. A carbon fork with plenty of mounts for loading up racks and bags. An internally routed dropper post that lets you get behind the saddle on descents. A wide-range 10-speed Microshift drivetrain with a big cog for taking the sting out of steep climbs when your bike is fully loaded.
For the explorer who knows no bounds, Farley 5 is the perfect go-anywhere adventure machine. It's built for you to choose your own adventure and load it with all of the racks and bags you need to get you there.
- All the mounts make it easy to add accessories and customize Farley for how you want to roam
- It comes with a carbon fork that has lower leg mounts for gear cages, mounts for our custom front rack, and rubber bumpers to protect the dropouts when the front wheel is removed
- Its huge 4.5-inch tires will keep you floating over snow, sand, mud, and dirt
- The progressive trail geometry feels more capable and confident than ever
- The internally routed dropper post lets you move around on the bike and get behind the saddle on steep descents
*Please note - spec applies to all sizes unless listed separately
| Frame |
Alpha Platinum Aluminum, tapered head tube, top tube bag mounts, strapless full frame bag mounts, downtube fender mount, lower downtube accessory mount, seat stay rear rack mounts, internal rear derailleur & dropper post routing, 100mm threaded BB, UDH, 197x12mm |
| Fork |
Farley carbon, tapered alloy steerer, crown rack mounts, lower leg cage mounts, 150x15mm thru axle |
| Max compatible fork travel |
80mm (492mm axle-to-crown) |
| Hub front |
Bontrager alloy, sealed bearing, 6-bolt, 15x150mm thru axle |
| Skewer front |
Bontrager Switch thru axle, removable lever |
| Hub rear |
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano 10 freehub, 197x12mm thru axle |
| Skewer rear |
Bontrager Switch thru axle, removable lever |
| Rim |
SUNRingle Mulefut 80 SL, 32-hole cutout |
| Tire |
Bontrager Gnarwhal Team Issue, Tubeless Ready, Inner Strength sidewalls, studdable, aramid bead, 120 tpi, 27.5x4.50'' |
| Max tire size |
27.5x4.50" |
| Shifter |
microSHIFT Advent X SL-M9605, 10 speed |
| Rear derailleur |
microSHIFT Advent X RD-M6205AM, 48T max cog |
| *Crank |
Size: S, M, L
FSA Comet, 30T, 170mm length |
Size: XL
FSA Comet, 30T, 175mm length |
| Bottom bracket |
FSA BB-7100, 100mm, BSA threaded |
| Cassette |
microSHIFT Advent X, 11-48, 10 speed |
| Chain |
KMC X10, 10 speed |
| Pedal |
VP-536 nylon platform |
| Max chainring size |
1x: 32T |
| Saddle |
Bontrager Verse P3, steel rails |
| *Seatpost |
Size: S
TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length |
Size: M
TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length |
Size: L, XL
TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length |
| Handlebar |
Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Grips |
Bontrager XR Trail Comp, nylon lock-on |
| *Stem |
Size: S
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length |
Size: M
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length |
Size: L, XL
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length |
| Headset |
FSA IS-2, 1-1/8'' top, 1.5'' bottom |
| Brake |
SRAM Level hydraulic disc |
| Brake rotor |
Avid G2 CleanSweep, 6-bolt, 160mm |
| Brake Set |
SRAM Level hydraulic disc |
| Rotor size |
Max brake rotor sizes: 180mm front & rear |
| Weight |
M - 16.20 kg / 35.72 lbs (with tubes) |
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
|
